SKU: SSUC.209-28

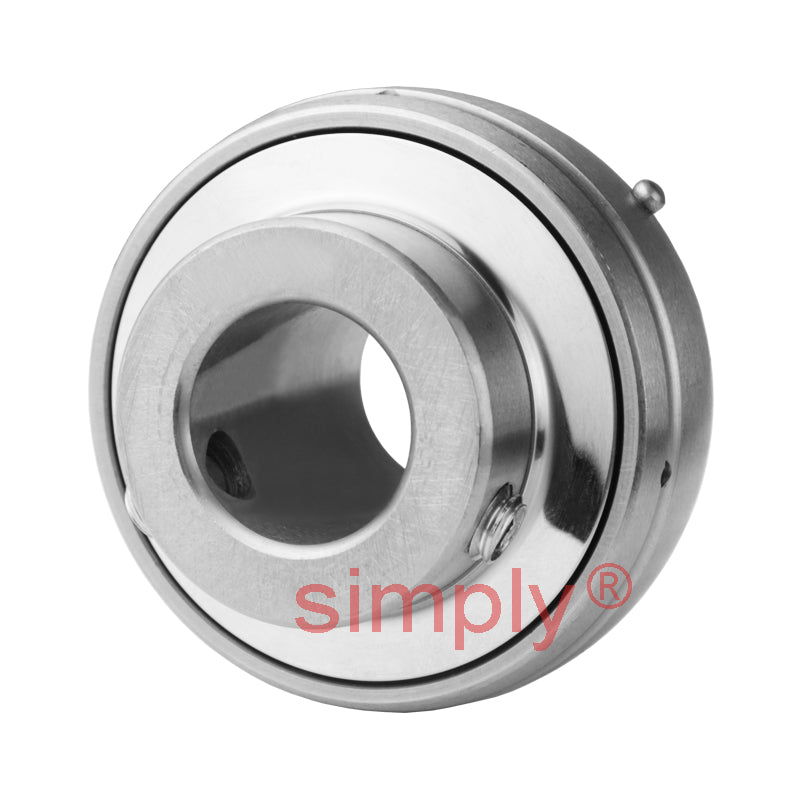

SSUC209-28 Imperial Stainless Steel Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
- Regular price
- €40.69 ex VAT
- Sale price
- €40,69
- Regular price
-
In stock
Quantity Price Breaks
3
€36.21
4
€34.18
9
€33.77
19
€33.37
49
€32.96
99
€32.55
499
€30.52
999
€30.11
1999
€29.70
2999
€29.30
4999
€28.48
SKU:
SSUC.209-28
SSUC209-28 Imperial Stainless Steel Bearing Insert with 1-3/4 inch Bore 85mm Outside Dia
- Regular price
- €40.69 ex VAT
- Sale price
- €40,69
- Regular price
-
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 1-3/4 inch |
| D | = | 85mm |
| Bi | = | 49.2mm |
| Be | = | 22mm |
| n | = | 19mm |
| m | = | 30.2mm |
| G | = | 10mm |
| Grub screw | = | 5/16" |
| -24 UNF | = | Weight |
| 0.7 kg | = | Dynamic load |
| 2560 kgf | = | Static load |
| 1810 kgf | = | N/A |
