SKU: SSUC.210-32

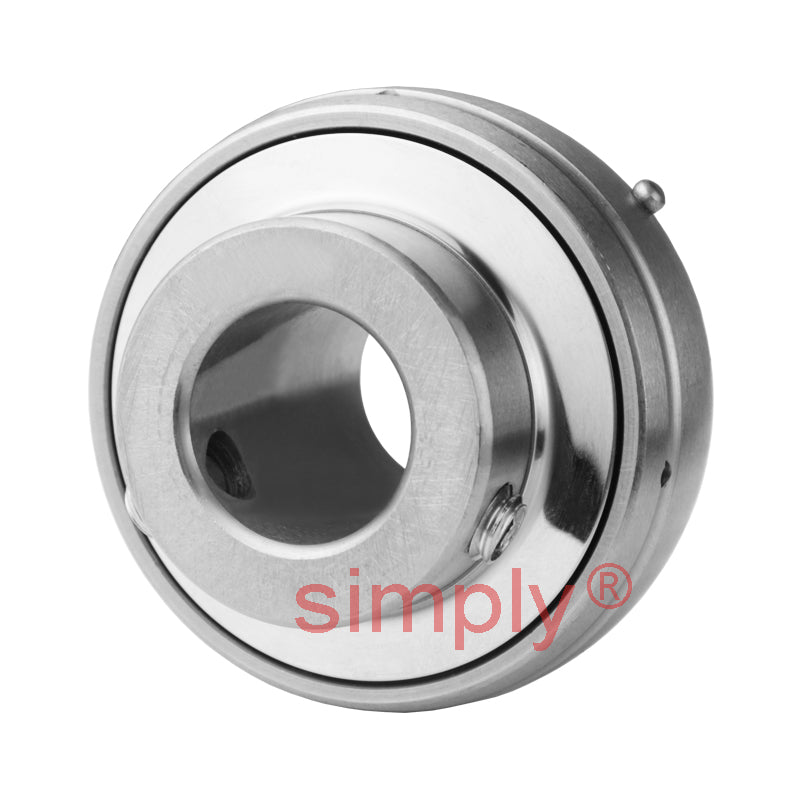

SSUC210-32 Imperial Stainless Steel Bearing Insert with 2 inch Bore 90mm Outside Dia
- Regular price
- €32.63 ex VAT
- Sale price
- €32,63
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
3
€29.04
4
€27.41
9
€27.08
19
€26.76
49
€26.43
99
€26.10
499
€24.47
999
€24.15
1999
€23.82
2999
€23.49
4999
€22.84
Description
|
SSUC or 10-G Series Stainless Steel Insert: Stainless steel sealed bearing insert with 2 grub screws to allow tightening against the shaft once fitted. This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. Benefits: Cost effective stainless bearing insert, re-lubricatable, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 2 inch |
| D | = | 90mm |
| Bi | = | 51.6mm |
| Be | = | 24mm |
| n | = | 19mm |
| m | = | 32.6mm |
| G | = | 10mm |
| Grub screw | = | 3/8" |
| -24 UNF | = | Weight |
| 0.82 kg | = | Dynamic load |
| 2750 kgf | = | Static load |
| 2020 kgf | = | N/A |
