SKU: SSUCF.205

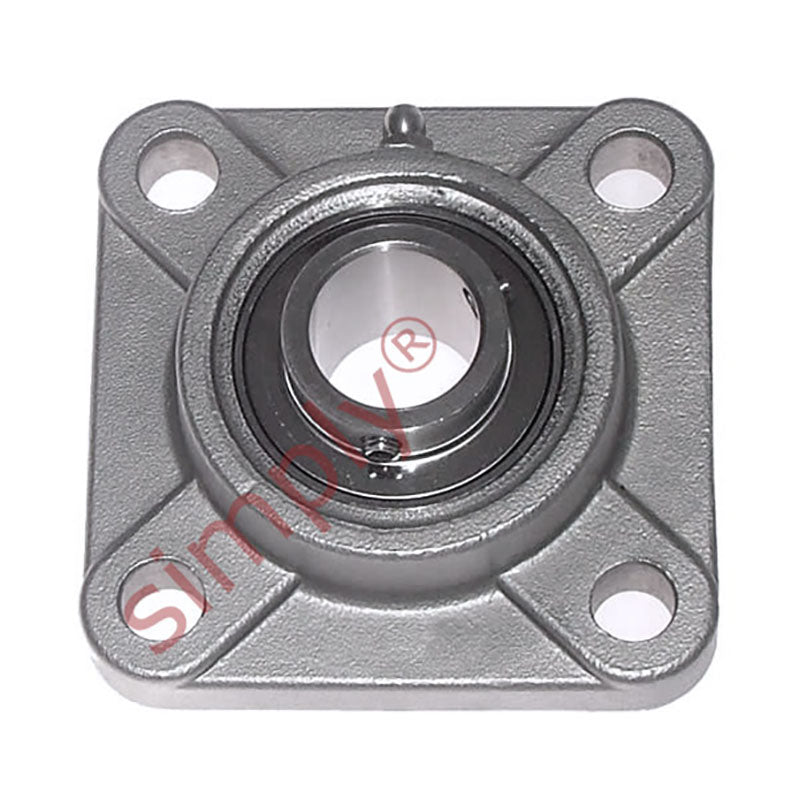

SSUCF205 Metric Four Bolt Square Stainless Steel Flange Housing with 25mm Bore Stainless Insert
- Regular price
- €53.97 ex VAT
- Sale price
- €53,97
- Regular price
-
In stock
Quantity Price Breaks
3
€48.03
4
€45.33
9
€44.80
19
€44.26
49
€43.72
99
€43.18
499
€40.48
999
€39.94
1999
€39.40
2999
€38.86
4999
€37.78
SKU:
SSUCF.205
SSUCF205 Metric Four Bolt Square Stainless Steel Flange Housing with 25mm Bore Stainless Insert
- Regular price
- €53.97 ex VAT
- Sale price
- €53,97
- Regular price
-
Description
|
UCF or SF Series Stainless Steel 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 25mm |
| a | = | 95mm |
| e | = | 70mm |
| i | = | 16mm |
| g | = | 14mm |
| L | = | 27mm |
| S | = | 12mm |
| Z | = | 35.7mm |
| Bi | = | 34mm |
| n | = | 14.3mm |
| Bolt | = | 10mm |
| Weight | = | 0.82 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
