SKU: SSUCF.210

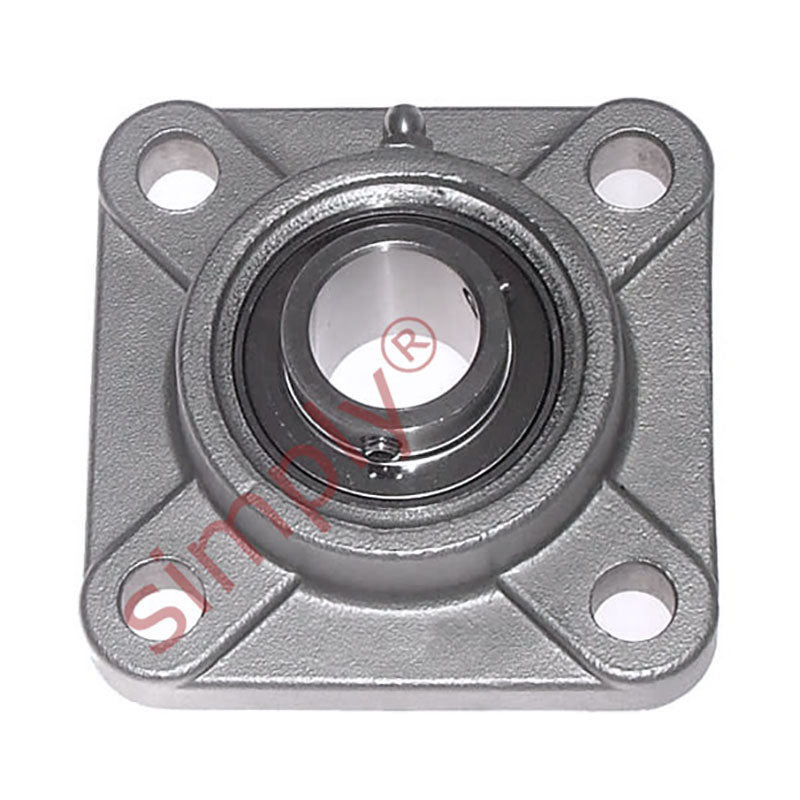

SSUCF210 Metric Four Bolt Square Stainless Steel Flange Housing with 50mm Bore Stainless Insert
- Regular price
- €124.91 ex VAT
- Sale price
- €124,91
- Regular price
-
In stock
Quantity Price Breaks
3
€111.17
4
€104.92
9
€103.68
19
€102.43
49
€101.18
99
€99.93
499
€93.68
999
€92.43
1999
€91.18
2999
€89.94
4999
€87.44
SKU:
SSUCF.210
SSUCF210 Metric Four Bolt Square Stainless Steel Flange Housing with 50mm Bore Stainless Insert
- Regular price
- €124.91 ex VAT
- Sale price
- €124,91
- Regular price
-
Description
|
UCF or SF Series Stainless Steel 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 50mm |
| a | = | 143mm |
| e | = | 111mm |
| i | = | 22mm |
| g | = | 18mm |
| L | = | 40mm |
| S | = | 16mm |
| Z | = | 54.6mm |
| Bi | = | 51.6mm |
| n | = | 19mm |
| Bolt | = | 16mm |
| Weight | = | 2.5 kg |
| Dynamic load | = | 2750 kgf |
| Static load | = | 2020 kgf |
