SKU: SSUCP.207

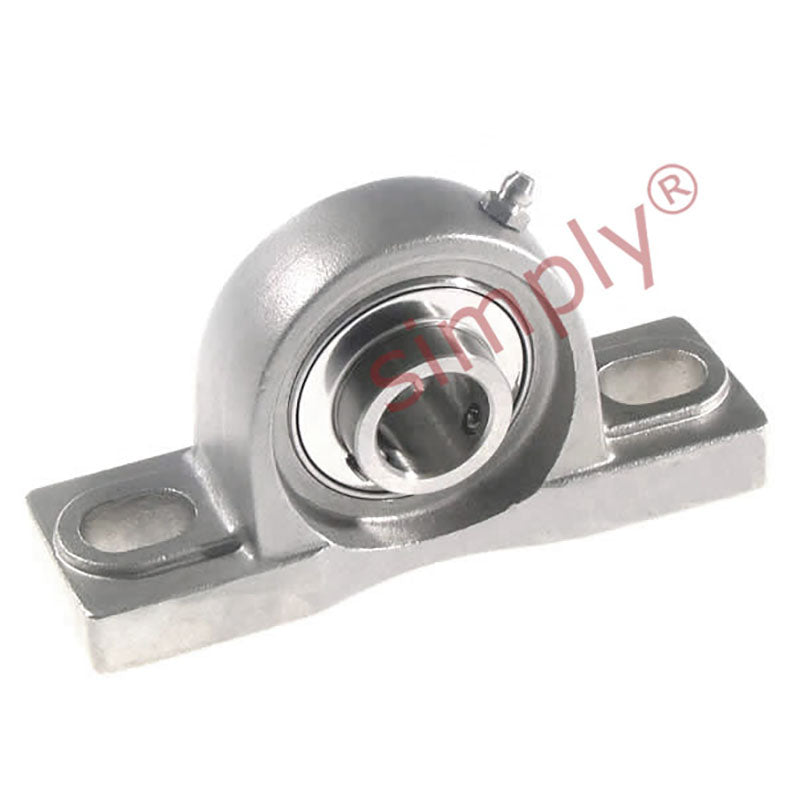

SSUCP207 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
- Regular price
- €108.61 ex VAT
- Sale price
- €108,61
- Regular price
-
In stock
Quantity Price Breaks
3
€96.66
4
€91.23
9
€90.15
19
€89.06
49
€87.97
99
€86.89
499
€81.46
999
€80.37
1999
€79.29
2999
€78.20
4999
€76.03
SKU:
SSUCP.207
SSUCP207 Metric Stainless Steel Two Bolt Pillow / Plummer Block Housing with 35mm Bore Stainless Insert
- Regular price
- €108.61 ex VAT
- Sale price
- €108,61
- Regular price
-
Description
|
UCP or NP Series Stainless Steel Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 35mm |
| h | = | 47.6mm |
| a | = | 167mm |
| e | = | 126mm |
| b | = | 48mm |
| s2 | = | 21mm |
| s1 | = | 17mm |
| g | = | 19mm |
| w | = | 92mm |
| B1 | = | 42.9mm |
| n | = | 17.5mm |
| Bolt | = | 14mm |
| Weight | = | 1.6 kg |
| Dynamic load | = | 2010 kgf |
| Static load | = | 1390 kgf |
| Rec max speed | = | 4500 rpm |
