SKU: SSUCT.205

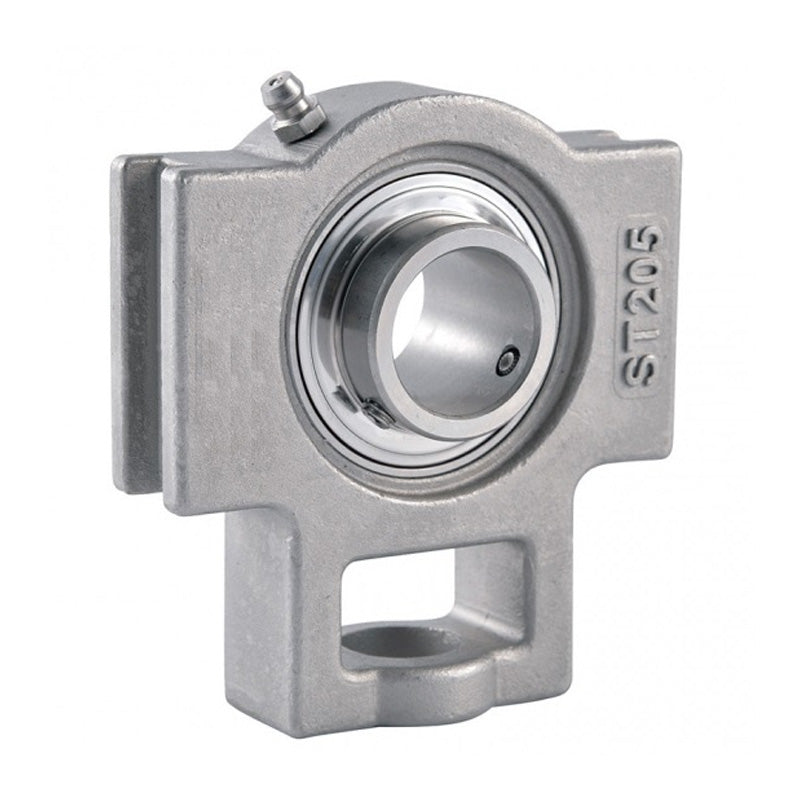

SSUCT205 Metric Stainless Steel Take Up Unit Housing with 25mm Bore Stainless Insert
- Regular price
- €71.52 ex VAT
- Sale price
- €71,52
- Regular price
-
In stock
Quantity Price Breaks
3
€63.65
4
€60.08
9
€59.36
19
€58.65
49
€57.93
99
€57.22
499
€53.64
999
€52.92
1999
€52.21
2999
€51.49
4999
€50.06
SKU:
SSUCT.205
SSUCT205 Metric Stainless Steel Take Up Unit Housing with 25mm Bore Stainless Insert
- Regular price
- €71.52 ex VAT
- Sale price
- €71,52
- Regular price
-
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |
Technical
| d | = | 25mm |
| o | = | 16mm |
| g | = | 10mm |
| p | = | 51mm |
| q | = | 32mm |
| s | = | 19.mm |
| b | = | 51mm |
| K | = | 12mm |
| e | = | 76mm |
| a | = | 89mm |
| w | = | 97mm |
| j | = | 32mm |
| l | = | 24mm |
| h | = | 62mm |
| Bi | = | 34mm |
| n | = | 14.3mm |
| Weight | = | 0.83 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Rec max speed | = | 6250 rpm |
