SKU: SSUCT.212

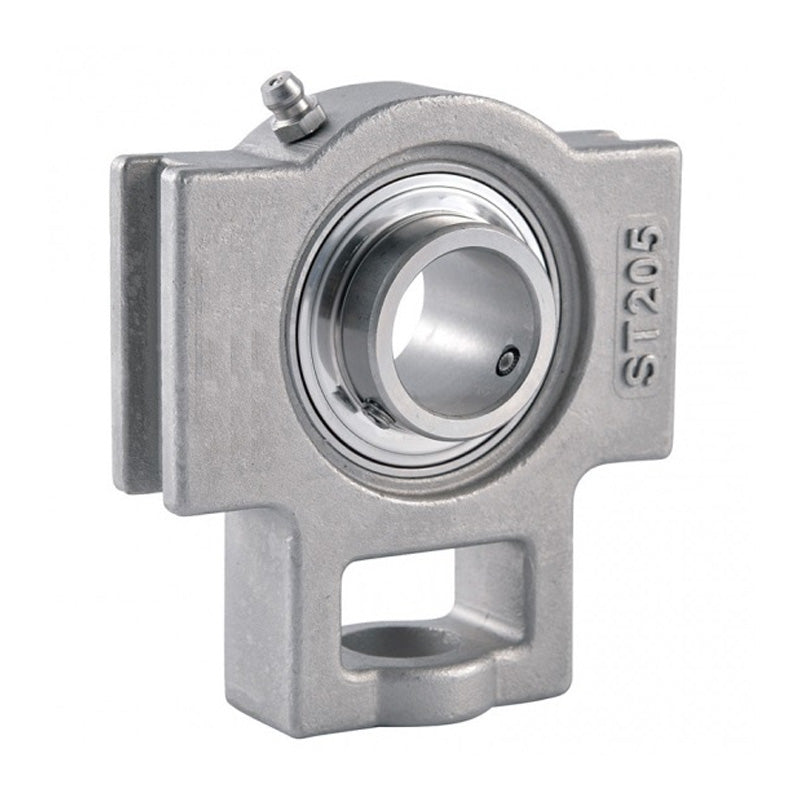

SSUCT212 Metric Stainless Steel Take Up Unit Housing with 60mm Bore Stainless Insert
- Regular price
- €228.22 ex VAT
- Sale price
- €228,22
- Regular price
-
Not in stock
Quantity Price Breaks
3
€203.12
4
€191.70
9
€189.42
19
€187.14
49
€184.86
99
€182.58
499
€171.17
999
€168.88
1999
€166.60
2999
€164.32
4999
€159.75
SKU:
SSUCT.212
SSUCT212 Metric Stainless Steel Take Up Unit Housing with 60mm Bore Stainless Insert
- Regular price
- €228.22 ex VAT
- Sale price
- €228,22
- Regular price
-
Description
|
SSUCT or ST Series Stainless Steel Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the stainless steel housing and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved, exceptionally strong and durable Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Due to the material requirements of these bearings to have a hard-wearing construction, they will be made of a harder form of Stainless Steel, such as 440 or similar, which will be attracted by magnets. Quotations for non-magnetic versions are available upon request. |

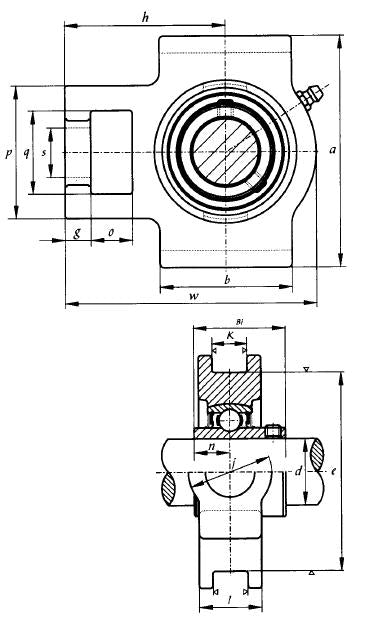

Technical
| d | = | 60mm |
| o | = | 32mm |
| g | = | 19mm |
| p | = | 102mm |
| q | = | 64mm |
| s | = | 35mm |
| b | = | 102mm |
| K | = | 22mm |
| e | = | 130mm |
| a | = | 146mm |
| w | = | 194mm |
| j | = | 64mm |
| l | = | 46mm |
| h | = | 119mm |
| Bi | = | 65.1mm |
| n | = | 25.4mm |
| Weight | = | 5.0 kg |
| Dynamic load | = | 4100 kgf |
| Static load | = | 3150 kgf |
| Rec max speed | = | 2800 rpm |
