SKU: ST1.3/16EC-RHP
RHP ST1-3/16EC Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
- Regular price
- €66.53 ex VAT
- Sale price
- €66,53
- Regular price
-
Not in stock
Quantity Price Breaks
10
€59.21
20
€55.89
30
€55.22
40
€54.55
50
€53.89
75
€53.22
100
€49.90
200
€49.23
250
€48.57
500
€47.90
1000
€46.57
SKU:
ST1.3/16EC-RHP
RHP ST1-3/16EC Cast Iron Take Up Unit and 1-3/16 inch Bore Insert
- Regular price
- €66.53 ex VAT
- Sale price
- €66,53
- Regular price
-
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

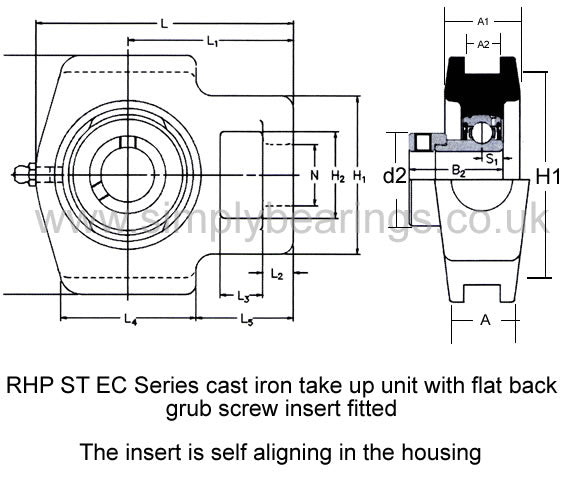

Technical
| Bore | = | 1-3/16 inch |
| L | = | 4.547 inch |
| L1 | = | 2.823 inch |
| L2 | = | 0.492 inch |
| L3 | = | 0.65 inch |
| L4 | = | 2.539 inch |
| L5 | = | 1.693 inch |
| H | = | 3.996 inch |
| H1 | = | 2.539 inch |
| H2 | = | 1.476 inch |
| H3 | = | 3.504 inch |
| N | = | 0.886 inch |
| A | = | 1.437 inch |
| A1 | = | 1.181 inch |
| A2 | = | 0.531 inch |
| B2 | = | 1.405 inch |
| s1 | = | 0.356 inch |
| d2 | = | 1.75 inch |
| Dynamic load | = | 19500 N |
| Static load | = | 11300 N |
| Rec max speed | = | 5300 rpm |
| Weight | = | 1.6 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1230-1-3/16ECG+insonly" |
| > | = | 1230-1-3/16ECG Click Here< |
| /a> | = | |
| Casting group | = | 4 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
