SKU: ST20-RHP
RHP ST20 Cast Iron Take Up Unit and 20mm Bore Insert
- Regular price
- €42.85 ex VAT
- Sale price
- €42,85
- Regular price
-
In stock
Quantity Price Breaks
10
€38.14
20
€35.99
30
€35.57
40
€35.14
50
€34.71
75
€34.28
100
€32.14
200
€31.71
250
€31.28
500
€30.85
1000
€30.00
SKU:
ST20-RHP
RHP ST20 Cast Iron Take Up Unit and 20mm Bore Insert
- Regular price
- €42.85 ex VAT
- Sale price
- €42,85
- Regular price
-
Description
|

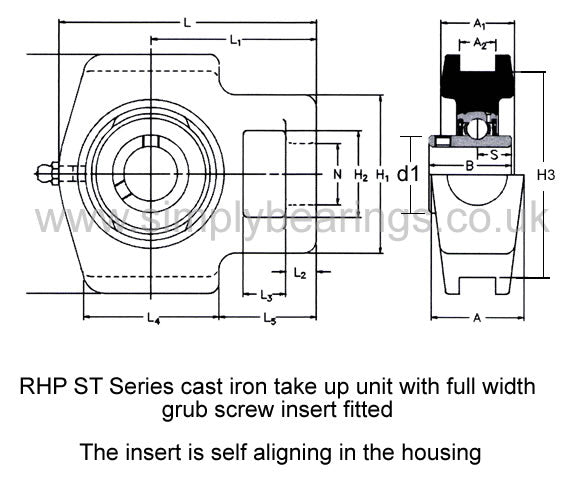

RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |
Technical
| Bore | = | 20mm |
| L | = | 95.5mm |
| L1 | = | 62mm |
| L2 | = | 11.5mm |
| L3 | = | 16mm |
| L4 | = | 50.5mm |
| L5 | = | 36.5mm |
| H | = | 88.5mm |
| H1 | = | 58.5mm |
| H2 | = | 32mm |
| H3 | = | 76mm |
| N | = | 22.5mm |
| A | = | 36mm |
| A1 | = | 27.5mm |
| A2 | = | 13.5mm |
| B | = | 30.96mm |
| s | = | 12.75mm |
| d1 | = | 28.5mm |
| Dynamic load | = | 12800 N |
| Static load | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1020-20G+insonly" |
| > | = | 1020-20G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
