SKU: ST20A-RHP
RHP ST20A Cast Iron Take Up Unit and 20mm Bore Insert
- Regular price
- €39.47 ex VAT
- Sale price
- €39,47
- Regular price
-
Not in stock
Quantity Price Breaks
10
€35.13
20
€33.15
30
€32.76
40
€32.37
50
€31.97
75
€31.58
100
€29.60
200
€29.21
250
€28.81
500
€28.42
1000
€27.63
SKU:
ST20A-RHP
RHP ST20A Cast Iron Take Up Unit and 20mm Bore Insert
- Regular price
- €39.47 ex VAT
- Sale price
- €39,47
- Regular price
-
Description
|
RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

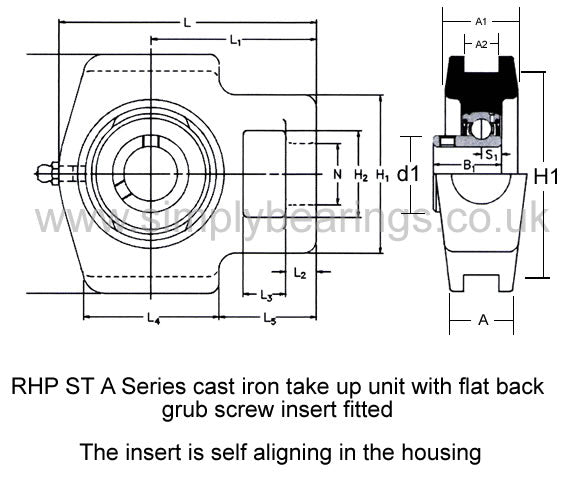

Technical
| Bore | = | 20mm |
| L | = | 95.5mm |
| L1 | = | 62mm |
| L2 | = | 11.5mm |
| L3 | = | 16mm |
| L4 | = | 50.5mm |
| L5 | = | 36.5mm |
| H | = | 88.5mm |
| H1 | = | 58.5mm |
| H2 | = | 32mm |
| H3 | = | 76mm |
| N | = | 22.5mm |
| A | = | 36mm |
| A1 | = | 27.5mm |
| A2 | = | 13.5mm |
| B1 | = | 25.77mm |
| s1 | = | 7.56mm |
| d1 | = | 28.5mm |
| Dynamic load | = | 12800 N |
| Static load | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1220-20G+insonly" |
| > | = | 1220-20G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
