SKU: ST25A-RHP
RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
- Regular price
- €51.01 ex VAT
- Sale price
- €51,01
- Regular price
-
Not in stock
Quantity Price Breaks
10
€45.40
20
€42.85
30
€42.34
40
€41.83
50
€41.32
75
€40.81
100
€38.26
200
€37.75
250
€37.24
500
€36.73
1000
€35.71
SKU:
ST25A-RHP

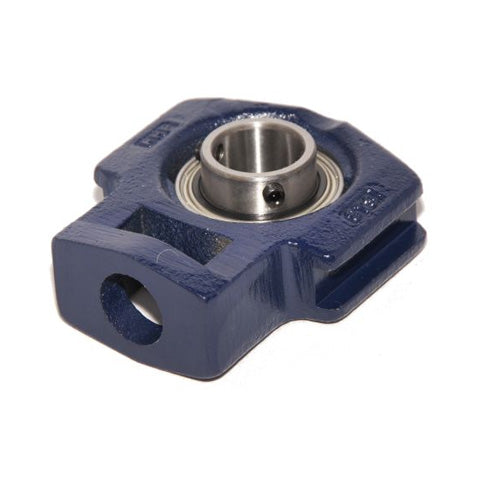

RHP ST25A Cast Iron Take Up Unit and 25mm Bore Insert
- Regular price
- €51.01 ex VAT
- Sale price
- €51,01
- Regular price
-
Description
|
RHP ST A Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

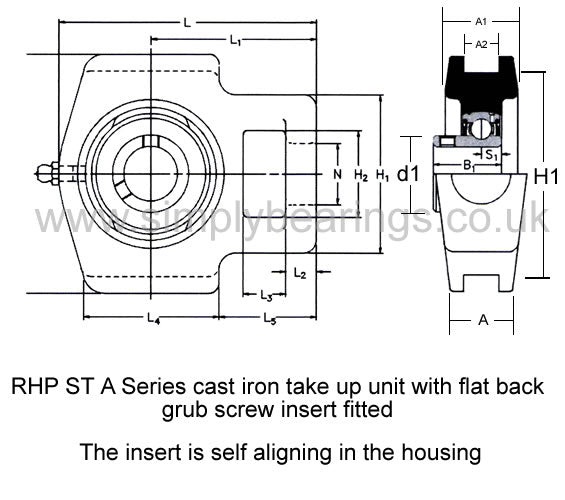

Technical
| Bore | = | 25mm |
| L | = | 98mm |
| L1 | = | 62mm |
| L2 | = | 11.5mm |
| L3 | = | 16mm |
| L4 | = | 50.5mm |
| L5 | = | 36.5mm |
| H | = | 88.5mm |
| H1 | = | 58.5mm |
| H2 | = | 32mm |
| H3 | = | 76mm |
| N | = | 22.5mm |
| A | = | 36mm |
| A1 | = | 27.5mm |
| A2 | = | 13.5mm |
| B1 | = | 27.35mm |
| s1 | = | 7.56mm |
| d1 | = | 34.01mm |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 1 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1225-25G+insonly" |
| > | = | 1225-25G Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
