SKU: ST25DEC-RHP

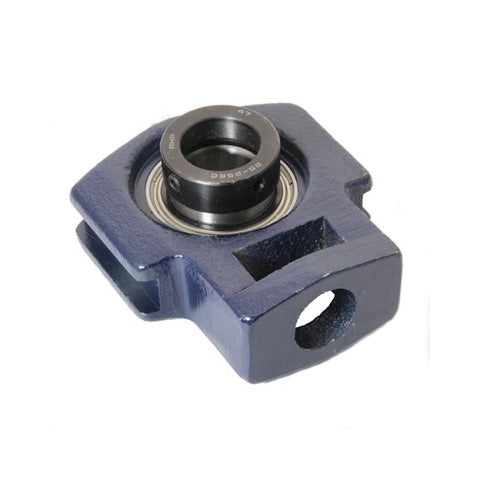

RHP ST25DEC Cast Iron Take Up Unit and 25mm Bore Insert
- Regular price
- €57.53 ex VAT
- Sale price
- €57,53
- Regular price
-
Not in stock
Quantity Price Breaks
10
€51.20
20
€48.33
30
€47.75
40
€47.17
50
€46.60
75
€46.02
100
€43.15
200
€42.57
250
€42.00
500
€41.42
1000
€40.27
SKU:
ST25DEC-RHP
RHP ST25DEC Cast Iron Take Up Unit and 25mm Bore Insert
- Regular price
- €57.53 ex VAT
- Sale price
- €57,53
- Regular price
-
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 25mm |
| L | = | 98mm |
| L1 | = | 62mm |
| L2 | = | 11.5mm |
| L3 | = | 16mm |
| L4 | = | 50.5mm |
| L5 | = | 36.5mm |
| H | = | 88.5mm |
| H1 | = | 58.5mm |
| H2 | = | 32mm |
| H3 | = | 76mm |
| N | = | 22.5mm |
| A | = | 36mm |
| A1 | = | 27.5mm |
| A2 | = | 13.5mm |
| B3 | = | 44.4mm |
| s2 | = | 17.49mm |
| d2 | = | 38.1mm |
| Dynamic load | = | 14000 N |
| Static load | = | 7880 N |
| Rec max speed | = | 6250 rpm |
| Weight | = | 1 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1025-25DECG+insonly" |
| > | = | 1025-25DECG Click Here< |
| /a> | = | |
| Casting group | = | 3 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
