SKU: ST2DEC-RHP
RHP ST2DEC Cast Iron Take Up Unit and 2 inch Bore Insert
- Regular price
- €165.86 ex VAT
- Sale price
- €165,86
- Regular price
-
Not in stock
Quantity Price Breaks
10
€147.62
20
€139.32
30
€137.66
40
€136.01
50
€134.35
75
€132.69
100
€124.40
200
€122.74
250
€121.08
500
€119.42
1000
€116.10
SKU:
ST2DEC-RHP
RHP ST2DEC Cast Iron Take Up Unit and 2 inch Bore Insert
- Regular price
- €165.86 ex VAT
- Sale price
- €165,86
- Regular price
-
Description
|

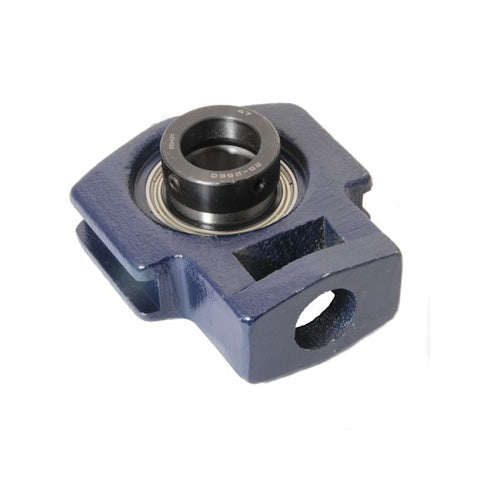

RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 2 inch |
| L | = | 7.165 inch |
| L1 | = | 4.488 inch |
| L2 | = | 0.748 inch |
| L3 | = | 1.26 inch |
| L4 | = | 3.839 inch |
| L5 | = | 2.756 inch |
| H | = | 5.748 inch |
| H1 | = | 3.976 inch |
| H2 | = | 2.52 inch |
| H3 | = | 5.118 inch |
| N | = | 1.378 inch |
| A | = | 2.5 inch |
| A1 | = | 1.831 inch |
| A2 | = | 1.063 inch |
| B3 | = | 2.813 inch |
| s2 | = | 1.095 inch |
| d2 | = | 3 inch |
| Dynamic load | = | 43500 N |
| Static load | = | 29200 N |
| Rec max speed | = | 3100 rpm |
| Weight | = | 4.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-2DECG+insonly" |
| > | = | 1055-2DECG Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
