SKU: ST3/4-RHP
RHP ST3/4 Cast Iron Take Up Unit and 3/4 inch Bore Insert
- Regular price
- €45.46 ex VAT
- Sale price
- €45,46
- Regular price
-
In stock
Quantity Price Breaks
10
€40.46
20
€38.19
30
€37.73
40
€37.28
50
€36.82
75
€36.37
100
€34.10
200
€33.64
250
€33.19
500
€32.73
1000
€31.82
SKU:
ST3/4-RHP
RHP ST3/4 Cast Iron Take Up Unit and 3/4 inch Bore Insert
- Regular price
- €45.46 ex VAT
- Sale price
- €45,46
- Regular price
-
Description
|
RHP ST Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a sealed full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft after installation. |

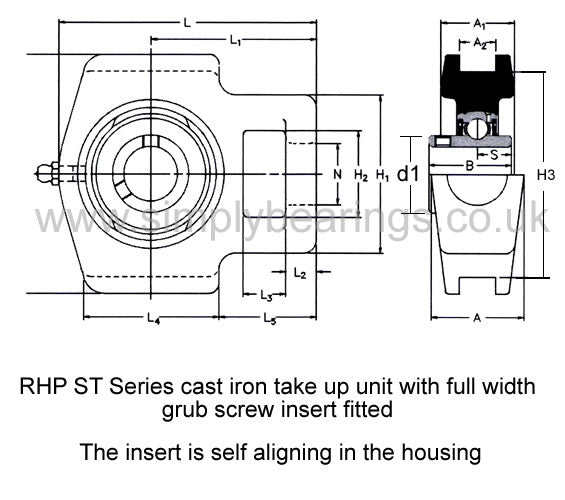

Technical
| Bore | = | 3/4 inch |
| L | = | 3.76 inch |
| L1 | = | 2.441 inch |
| L2 | = | 0.453 inch |
| L3 | = | 0.63 inch |
| L4 | = | 1.988 inch |
| L5 | = | 1.437 inch |
| H | = | 3.484 inch |
| H1 | = | 2.303 inch |
| H2 | = | 1.26 inch |
| H3 | = | 2.992 inch |
| N | = | 0.886 inch |
| A | = | 1.417 inch |
| A1 | = | 1.083 inch |
| A2 | = | 0.531 inch |
| B | = | 1.219 inch |
| s | = | 0.502 inch |
| d1 | = | 1.122 inch |
| Dynamic load | = | 12800 N |
| Static load | = | 6650 N |
| Rec max speed | = | 6700 rpm |
| Weight | = | 0.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1020-3/4G+insonly" |
| > | = | 1020-3/4G Click Here< |
| /a> | = | |
| Casting group | = | 2 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
