SKU: ST35DEC-RHP
RHP ST35DEC Cast Iron Take Up Unit and 35mm Bore Insert
- Regular price
- €80.51 ex VAT
- Sale price
- €80,51
- Regular price
-
Not in stock
Quantity Price Breaks
10
€71.65
20
€67.63
30
€66.82
40
€66.02
50
€65.21
75
€64.41
100
€60.38
200
€59.58
250
€58.77
500
€57.97
1000
€56.36
SKU:
ST35DEC-RHP
RHP ST35DEC Cast Iron Take Up Unit and 35mm Bore Insert
- Regular price
- €80.51 ex VAT
- Sale price
- €80,51
- Regular price
-
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

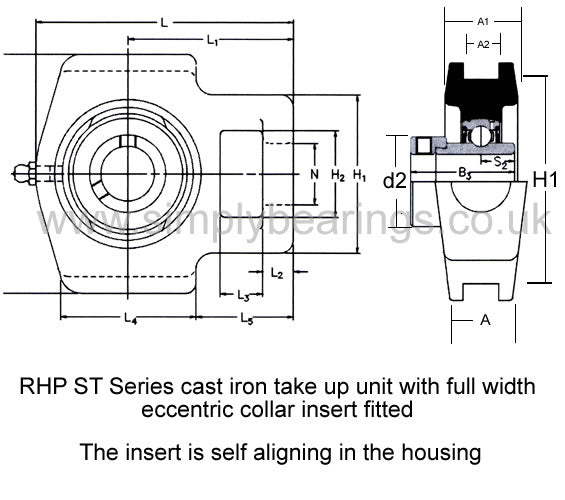

Technical
| Bore | = | 35mm |
| L | = | 124mm |
| L1 | = | 75.5mm |
| L2 | = | 12.5mm |
| L3 | = | 16.5mm |
| L4 | = | 64.5mm |
| L5 | = | 43mm |
| H | = | 101.5mm |
| H1 | = | 64.5mm |
| H2 | = | 37.5mm |
| H3 | = | 89mm |
| N | = | 22.5mm |
| A | = | 36.5mm |
| A1 | = | 30mm |
| A2 | = | 13.5mm |
| B3 | = | 51.18mm |
| s2 | = | 18.89mm |
| d2 | = | 55.58mm |
| Dynamic load | = | 25700 N |
| Static load | = | 15300 N |
| Rec max speed | = | 4500 rpm |
| Weight | = | 1.6 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1035-35DECG+insonly" |
| > | = | 1035-35DECG Click Here< |
| /a> | = | |
| Casting group | = | 5 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
