SKU: ST45EC-RHP
RHP ST45EC Cast Iron Take Up Unit and 45mm Bore Insert
- Regular price
- €101.21 ex VAT
- Sale price
- €101,21
- Regular price
-
Not in stock
Quantity Price Breaks
10
€90.08
20
€85.02
30
€84.00
40
€82.99
50
€81.98
75
€80.97
100
€75.91
200
€74.90
250
€73.88
500
€72.87
1000
€70.85
SKU:
ST45EC-RHP
RHP ST45EC Cast Iron Take Up Unit and 45mm Bore Insert
- Regular price
- €101.21 ex VAT
- Sale price
- €101,21
- Regular price
-
Description
|
RHP ST EC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a flat back bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |

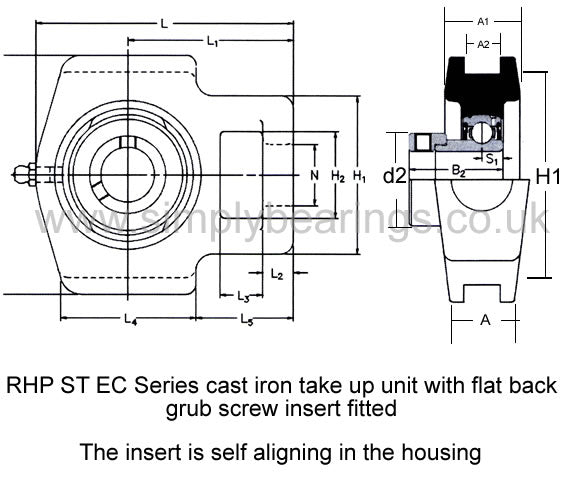

Technical
| Bore | = | 45mm |
| L | = | 147mm |
| L1 | = | 89.2mm |
| L2 | = | 15.5mm |
| L3 | = | 20.5mm |
| L4 | = | 81.5mm |
| L5 | = | 50.5mm |
| H | = | 118mm |
| H1 | = | 82.5mm |
| H2 | = | 49.5mm |
| H3 | = | 101mm |
| N | = | 29mm |
| A | = | 49.5mm |
| A1 | = | 37mm |
| A2 | = | 17.5mm |
| B2 | = | 43.64mm |
| s1 | = | 11.05mm |
| d2 | = | 63.5mm |
| Dynamic load | = | 32500 N |
| Static load | = | 20500 N |
| Rec max speed | = | 3700 rpm |
| Weight | = | 2.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1245-45ECG+insonly" |
| > | = | 1245-45ECG Click Here< |
| /a> | = | |
| Casting group | = | 7 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
