SKU: ST50DEC-RHP

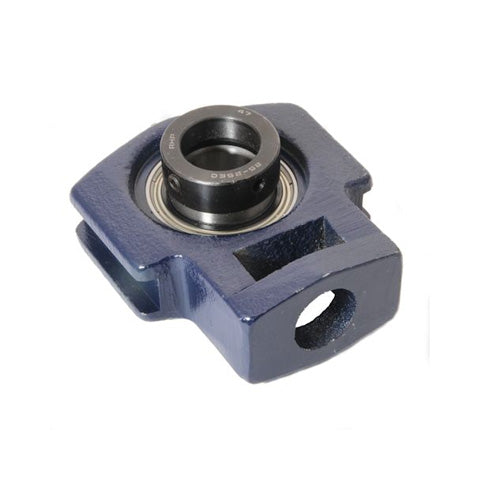

RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
- Regular price
- €119.81 ex VAT
- Sale price
- €119,81
- Regular price
-
Not in stock
Quantity Price Breaks
10
€106.63
20
€100.64
30
€99.44
40
€98.24
50
€97.05
75
€95.85
100
€89.86
200
€88.66
250
€87.46
500
€86.26
1000
€83.87
SKU:
ST50DEC-RHP
RHP ST50DEC Cast Iron Take Up Unit and 50mm Bore Insert
- Regular price
- €119.81 ex VAT
- Sale price
- €119,81
- Regular price
-
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 50mm |
| L | = | 151mm |
| L1 | = | 90.5mm |
| L2 | = | 15.5mm |
| L3 | = | 20.5mm |
| L4 | = | 81.5mm |
| L5 | = | 50.5mm |
| H | = | 118mm |
| H1 | = | 82.5mm |
| H2 | = | 49.5mm |
| H3 | = | 101mm |
| N | = | 29mm |
| A | = | 49.5mm |
| A1 | = | 37mm |
| A2 | = | 17.5mm |
| B3 | = | 62.7mm |
| s2 | = | 24.65mm |
| d2 | = | 69.85mm |
| Dynamic load | = | 35000 N |
| Static load | = | 23200 N |
| Rec max speed | = | 3400 rpm |
| Weight | = | 2.8 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1050-50DECG+insonly" |
| > | = | 1050-50DECG Click Here< |
| /a> | = | |
| Casting group | = | 8 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
