SKU: ST55DEC-RHP

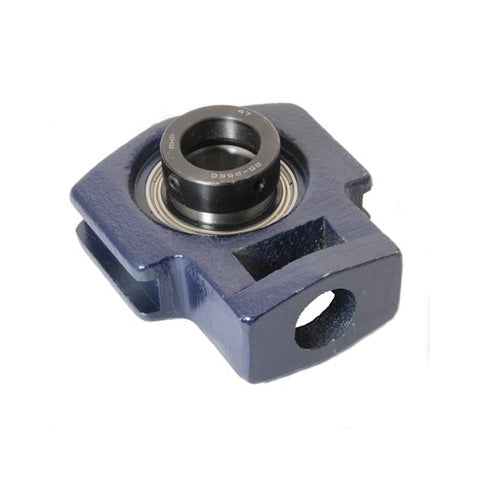

RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
- Regular price
- €153.76 ex VAT
- Sale price
- €153,76
- Regular price
-
Not in stock
Quantity Price Breaks
10
€136.85
20
€129.16
30
€127.62
40
€126.08
50
€124.55
75
€123.01
100
€115.32
200
€113.78
250
€112.24
500
€110.71
1000
€107.63
SKU:
ST55DEC-RHP
RHP ST55DEC Cast Iron Take Up Unit and 55mm Bore Insert
- Regular price
- €153.76 ex VAT
- Sale price
- €153,76
- Regular price
-
Description
|
RHP ST DEC Series Cast Iron Take Up Housing Units: Take up type cast iron bearing unit supplied with a full width bearing insert fitted and includes a grease nipple to facilitate re-lubrication. The bearing insert has an eccentric collar and grub screw to allow tightening against the shaft after installation. |
Technical
| Bore | = | 55mm |
| L | = | 182mm |
| L1 | = | 114mm |
| L2 | = | 19mm |
| L3 | = | 32mm |
| L4 | = | 97.5mm |
| L5 | = | 70mm |
| H | = | 146mm |
| H1 | = | 101mm |
| H2 | = | 64mm |
| H3 | = | 130mm |
| N | = | 35mm |
| A | = | 63.5mm |
| A1 | = | 46.5mm |
| A2 | = | 27mm |
| B3 | = | 71.44mm |
| s2 | = | 27.82mm |
| d2 | = | 76.2mm |
| Dynamic load | = | 43500 N |
| Static load | = | 29200 N |
| Rec max speed | = | 3100 rpm |
| Weight | = | 4.2 kg |
| Insert | = | < |
| a href=" | = | advanced_search_result.php?keywords=1055-55DECG+insonly" |
| > | = | 1055-55DECG Click Here< |
| /a> | = | |
| Casting group | = | 9 |
| Grease nipple thread | = | 1/4 UNF, 1/4 inch x 28 TPI |
