SKU: SU004

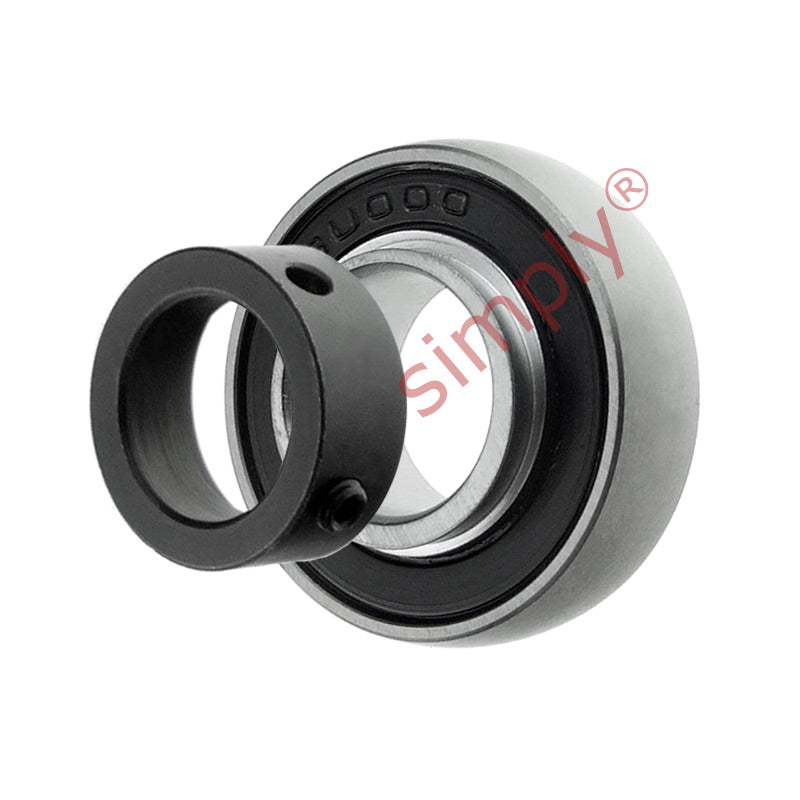

SU004 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Diameter
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
In stock
Quantity Price Breaks
3
€22.31
4
€21.06
9
€20.81
19
€20.56
49
€20.31
99
€20.06
499
€18.80
999
€18.55
1999
€18.30
2999
€18.05
4999
€17.55
SKU:
SU004
SU004 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 20mm Bore 42mm Outside Diameter
- Regular price
- €25.07 ex VAT
- Sale price
- €25,07
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 20mm |
| D | = | 42mm |
| L | = | 24.5mm |
| Bi | = | 16.5mm |
| Be | = | 12mm |
| r | = | 1mm |
| n | = | 6mm |
| B3 | = | 11mm |
| d1 | = | 30mm |
| A | = | 5mm |
| ds | = | M5x0.8 |
| Dynamic load | = | 955 N ~ 97.383 kgf |
| Static load | = | 515 N ~ 52.515 kgf |
| Weight | = | 0.11 kg |
