SKU: SU006

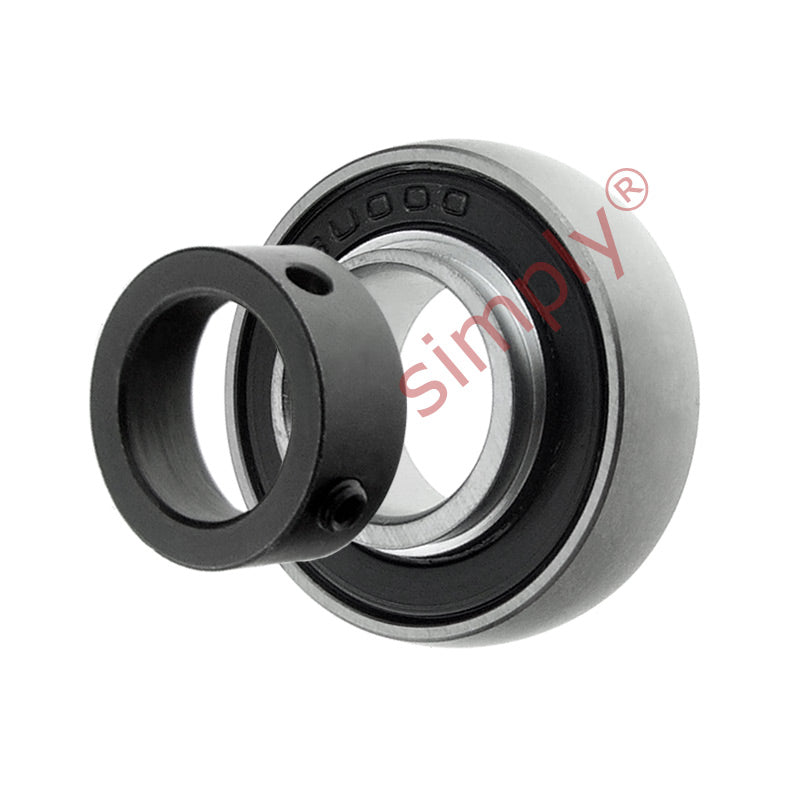

SU006 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 30mm Bore 55mm Outside Diameter
- Regular price
- €24.81 ex VAT
- Sale price
- €24,81
- Regular price
-
Not in stock
Quantity Price Breaks
3
€22.08
4
€20.84
9
€20.59
19
€20.34
49
€20.10
99
€19.85
499
€18.61
999
€18.36
1999
€18.11
2999
€17.86
4999
€17.37
SKU:
SU006
SU006 Stainless Steel Metric Eccentric Collar Type Bearing Insert with 30mm Bore 55mm Outside Diameter
- Regular price
- €24.81 ex VAT
- Sale price
- €24,81
- Regular price
-
Description
|
Miniature SA or RAE Series Eccentric Collar Type Insert: Sealed bearing insert with eccentric shaft locking collar and grub screws to allow tightening against the shaft once fitted.
This insert is typical of those found in housed bearings and has a spherical outer diameter to facilitate removal and re-fitting into a housing. |
Technical
| d | = | 30mm |
| D | = | 55mm |
| L | = | 26.5mm |
| Bi | = | 18.5mm |
| Be | = | 13mm |
| r | = | 1.5mm |
| n | = | 6.5mm |
| B3 | = | 12mm |
| d1 | = | 42mm |
| A | = | 5mm |
| ds | = | M5x0.8 |
| Dynamic load | = | 1350 N ~ 137.662 kgf |
| Static load | = | 845 N ~ 86.166 kgf |
| Weight | = | 0.21 kg |
