SKU: SUCF.PL.205

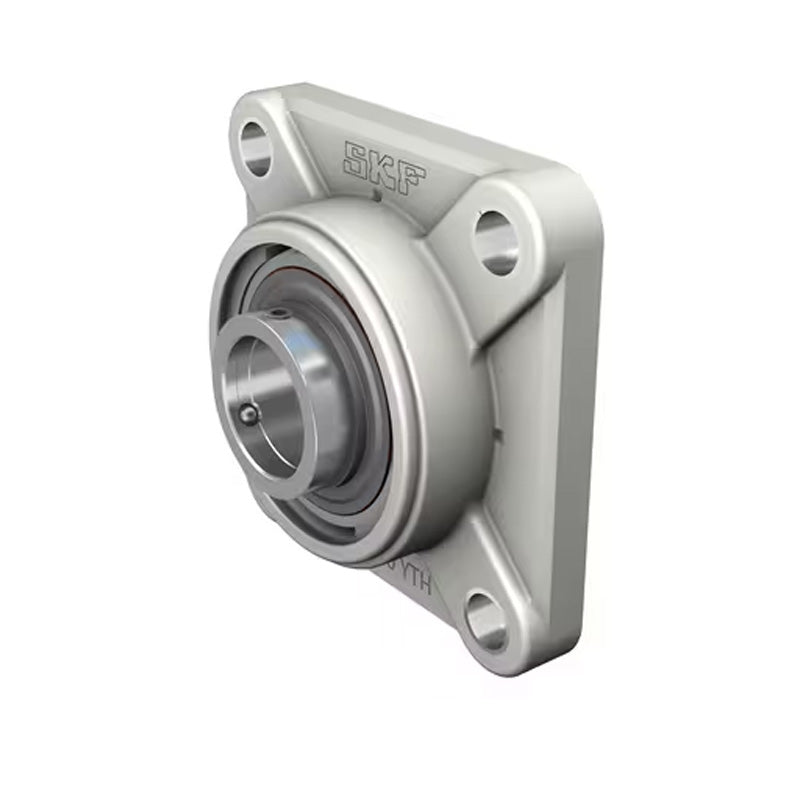

SUCFPL205 Metric Four Bolt Square Thermo Plastic Flange Housing with 25mm Bore Stainless Insert
- Regular price
- €45.54 ex VAT
- Sale price
- €45,54
- Regular price
-
In stock
Quantity Price Breaks
3
€40.53
4
€38.25
9
€37.80
19
€37.34
49
€36.89
99
€36.43
499
€34.16
999
€33.70
1999
€33.24
2999
€32.79
4999
€31.88
SKU:
SUCF.PL.205
SUCFPL205 Metric Four Bolt Square Thermo Plastic Flange Housing with 25mm Bore Stainless Insert
- Regular price
- €45.54 ex VAT
- Sale price
- €45,54
- Regular price
-
Description
|
UCFPL or PSF Series Thermo-Plastic 4 Bolt Square Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 25mm |
| a | = | 95mm |
| e | = | 70mm |
| i | = | 16mm |
| g | = | 14mm |
| L | = | 27mm |
| S | = | 12mm |
| Z | = | 35.7mm |
| Bi | = | 34mm |
| n | = | 14.3mm |
| Bolt | = | 10mm |
| Weight | = | 0.82 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Temperature Range | = | -35 to 102 deg C |
