SKU: SUCP.PL.205-16

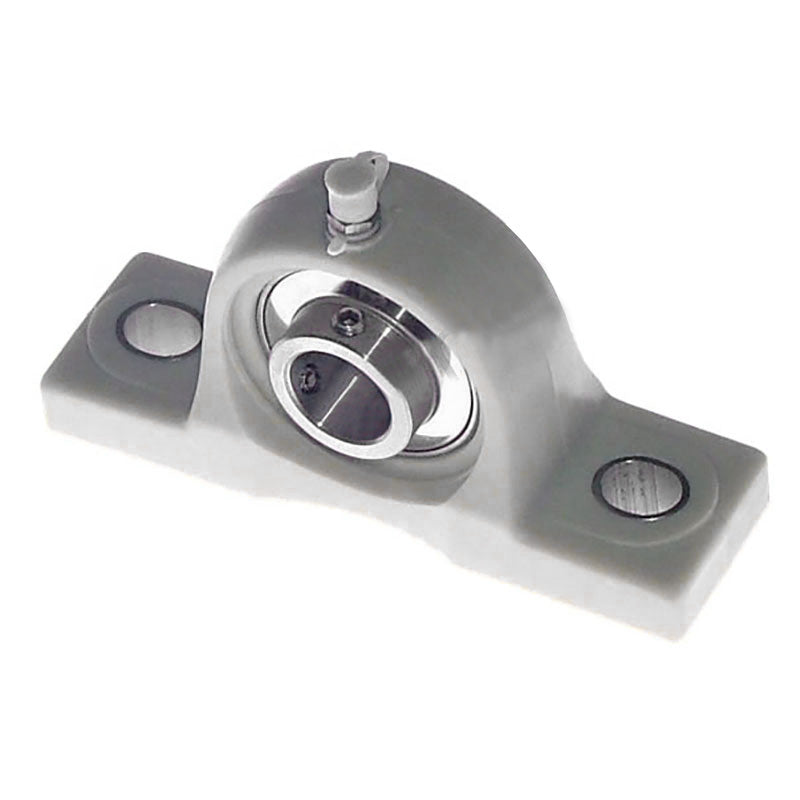

SUCPPL205-16 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert
- Regular price
- €41.55 ex VAT
- Sale price
- €41,55
- Regular price
-
In stock
Quantity Price Breaks
3
€36.98
4
€34.90
9
€34.49
19
€34.07
49
€33.66
99
€33.24
499
€31.16
999
€30.75
1999
€30.33
2999
€29.92
4999
€29.09
SKU:
SUCP.PL.205-16
SUCPPL205-16 Imperial Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 1 inch Bore Stainless Insert
- Regular price
- €41.55 ex VAT
- Sale price
- €41,55
- Regular price
-
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 1 inch |
| h | = | 36.5mm |
| a | = | 140mm |
| e | = | 105mm |
| b | = | 38mm |
| s2 | = | 19mm |
| s1 | = | 13mm |
| g | = | 16mm |
| w | = | 70mm |
| B1 | = | 34mm |
| n | = | 14.3mm |
| Bolt | = | 10mm |
| Weight | = | 0.79 kg |
| Dynamic load | = | 1100 kgf |
| Static load | = | 710 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 6250 rpm |
