SKU: SUCP.PL.210

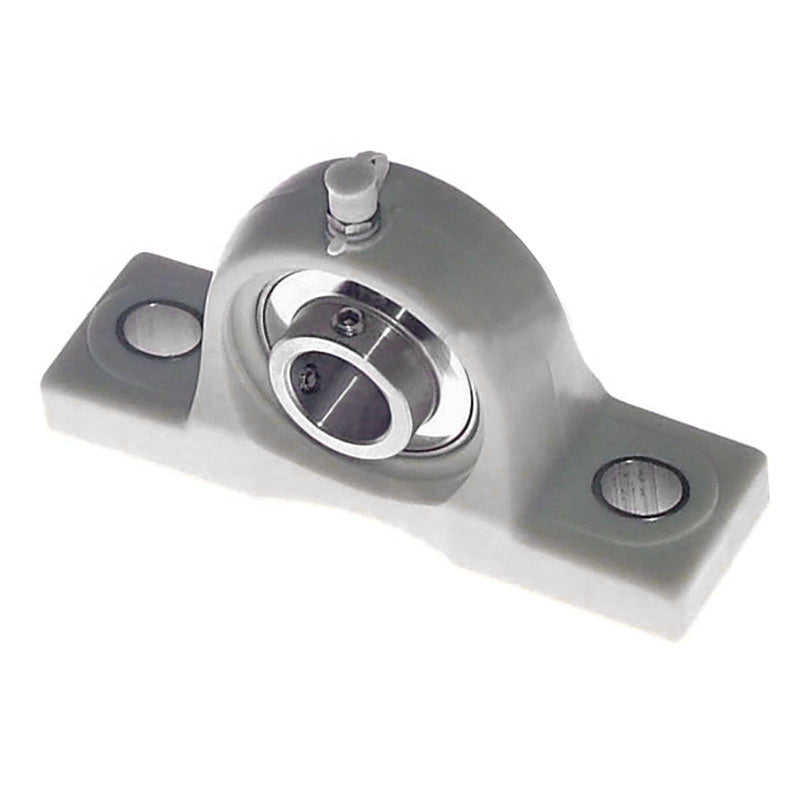

SUCPPL210 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
- Regular price
- €125.32 ex VAT
- Sale price
- €125,32
- Regular price
-
In stock
Quantity Price Breaks
3
€111.53
4
€105.27
9
€104.02
19
€102.76
49
€101.51
99
€100.26
499
€93.99
999
€92.74
1999
€91.48
2999
€90.23
4999
€87.72
SKU:
SUCP.PL.210
SUCPPL210 Metric Thermo Plastic Two Bolt Pillow / Plummer Block Housing with 50mm Bore Stainless Insert
- Regular price
- €125.32 ex VAT
- Sale price
- €125,32
- Regular price
-
Description
|
UCP or NP Series Thermo-Plastic Plummer / Pillow Housings: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 50mm |
| h | = | 57.2mm |
| a | = | 206mm |
| e | = | 159mm |
| b | = | 60mm |
| s2 | = | 25mm |
| s1 | = | 20mm |
| g | = | 22mm |
| w | = | 112mm |
| B1 | = | 51.6mm |
| n | = | 19mm |
| Bolt | = | 16mm |
| Weight | = | 2.8 kg |
| Dynamic load | = | 2750 kgf |
| Static load | = | 2020 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 3400 rpm |
