SKU: SUCT.PL.206

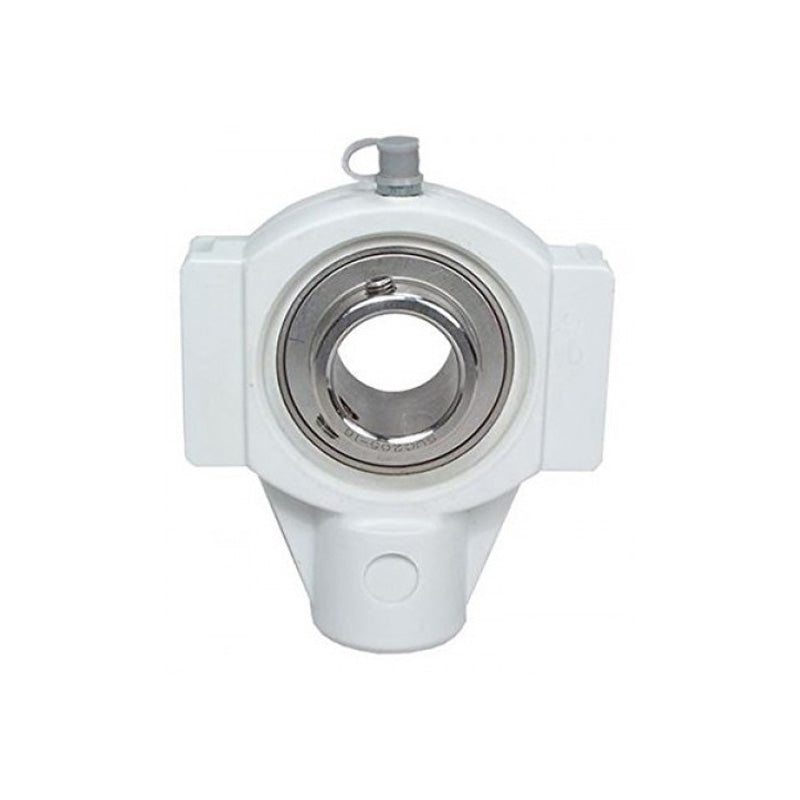

SUCTPL206 Metric Thermo Plastic Take Up Unit Housing with 30mm Bore Stainless Insert
- Regular price
- €61.22 ex VAT
- Sale price
- €61,22
- Regular price
-
In stock
Quantity Price Breaks
3
€54.49
4
€51.42
9
€50.81
19
€50.20
49
€49.59
99
€48.98
499
€45.92
999
€45.30
1999
€44.69
2999
€44.08
4999
€42.85
SKU:
SUCT.PL.206
SUCTPL206 Metric Thermo Plastic Take Up Unit Housing with 30mm Bore Stainless Insert
- Regular price
- €61.22 ex VAT
- Sale price
- €61,22
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 30mm |
| a | = | 125mm |
| c | = | 34.5mm |
| d | = | 12mm |
| h | = | 76mm |
| m | = | 89mm |
| s | = | M16 |
| t | = | 40mm |
| v | = | 102mm |
| w | = | 63mm |
| B | = | 38.1mm |
| n | = | 15.9mm |
| Weight | = | 1.3 kg |
| Dynamic load | = | 1520 kgf |
| Static load | = | 1020 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 5300 rpm |
