SKU: SUCT.PL.210

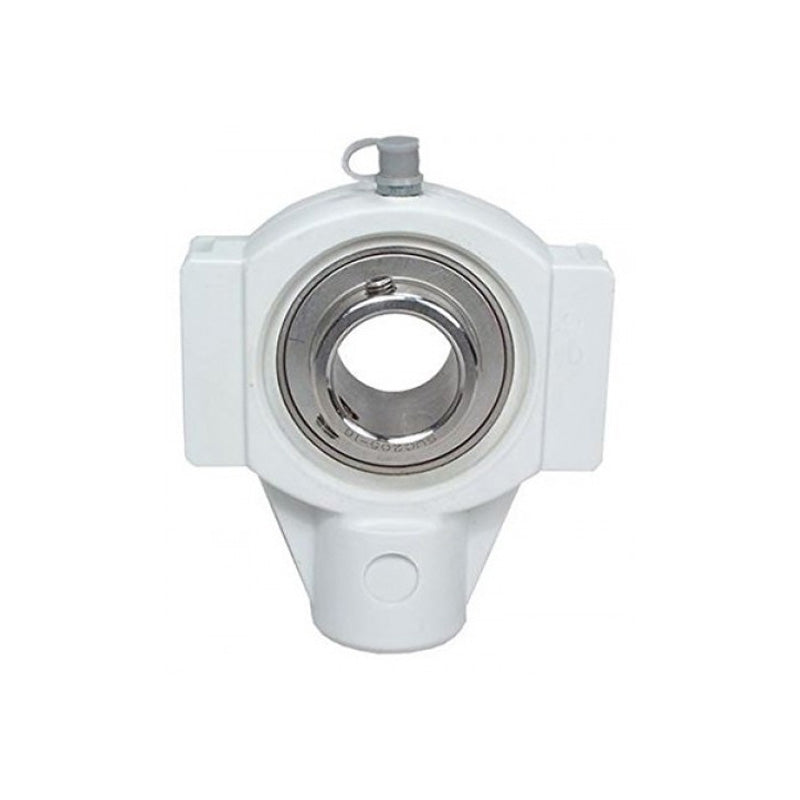

SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
- Regular price
- €124.16 ex VAT
- Sale price
- €124,16
- Regular price
-
In stock
Quantity Price Breaks
3
€110.50
4
€104.29
9
€103.05
19
€101.81
49
€100.57
99
€99.33
499
€93.12
999
€91.88
1999
€90.64
2999
€89.40
4999
€86.91
SKU:
SUCT.PL.210
SUCTPL210 Metric Thermo Plastic Take Up Unit Housing with 50mm Bore Stainless Insert
- Regular price
- €124.16 ex VAT
- Sale price
- €124,16
- Regular price
-
Description
|
SUCTPL or ST Series Thermo-Plastic Take up Units: Supplied with a fully sealed stainless steel bearing insert fitted in the plastic housing which has pre-fitted anti crush stainless steel inserts in the bolt holes and also includes a grease nipple to facilitate re-lubrication. The bearing insert has 2 grub screws to allow tightening against the shaft once fitted. The inserts (available separately) can be removed from the housings for future replacement as required Benefits: Cost effective bearing / housing assembly, re-lubricatable, replaceable insert, grub screw fixing, food safe and approved Note: These bearings will eventually corrode in a marine environment and it is recommended to completely cover with grease or similar protection where practical. Colour may vary. |
Technical
| d | = | 50mm |
| a | = | 149mm |
| c | = | 40mm |
| d | = | 16mm |
| h | = | 90mm |
| m | = | 102mm |
| s | = | M20 |
| t | = | 50mm |
| v | = | 117mm |
| w | = | 85mm |
| B | = | 51.6mm |
| n | = | 19mm |
| Weight | = | 2.5 kg |
| Dynamic load | = | 2750 kgf |
| Static load | = | 2020 kgf |
| Temperature Range | = | -35 to 102 deg C |
| Rec max speed | = | 3400 rpm |
