SKU: TA.1520.Z

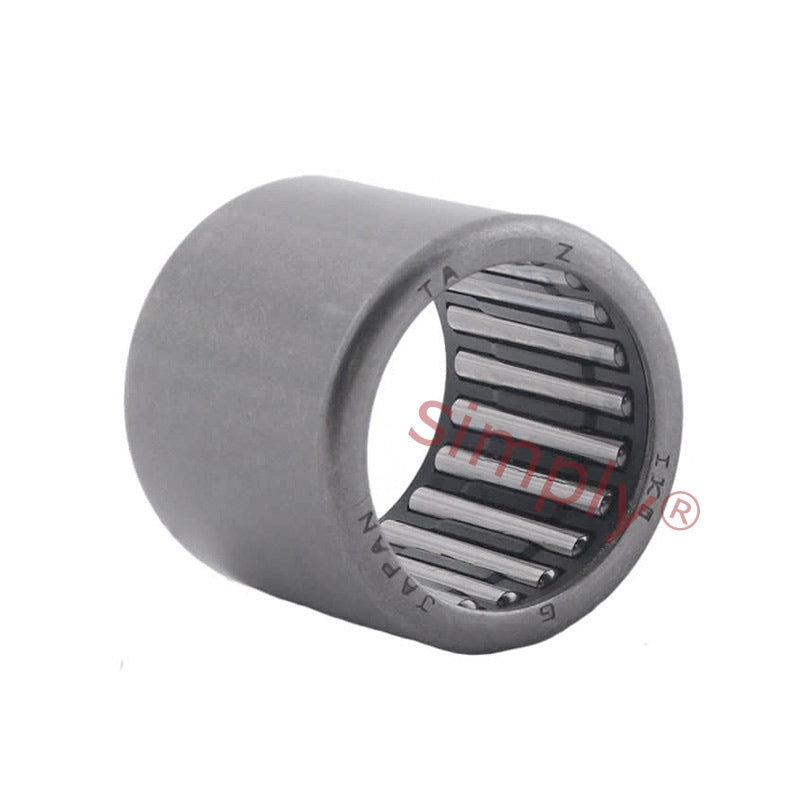

IKO TA1520Z Needle Roller Bearing Open End Type 15x22x20mm
- Regular price
- €13.21 ex VAT
- Sale price
- €13,21
- Regular price
-
In stock
Quantity Price Breaks
10
€11.76
19
€11.10
29
€10.96
39
€10.83
49
€10.70
74
€10.57
99
€9.91
199
€9.78
249
€9.64
499
€9.51
999
€9.25
SKU:
TA.1520.Z
IKO TA1520Z Needle Roller Bearing Open End Type 15x22x20mm
- Regular price
- €13.21 ex VAT
- Sale price
- €13,21
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 15mm |
| D | = | 22mm |
| C | = | 20mm |
| Dynamic load | = | 12700 N |
| Static load | = | 17600 N |
| Inner race | = | IRT1020-1 |
| Weight | = | 21 g |
