SKU: TA.3525.Z
IKO TA3525Z Needle Roller Bearing Open End Type 35x45x25mm
- Regular price
- €16.19 ex VAT
- Sale price
- €16,19
- Regular price
-
In stock
Quantity Price Breaks
10
€14.41
19
€13.60
29
€13.44
39
€13.28
49
€13.11
74
€12.95
99
€12.14
199
€11.98
249
€11.82
499
€11.66
999
€11.33
SKU:
TA.3525.Z
IKO TA3525Z Needle Roller Bearing Open End Type 35x45x25mm
- Regular price
- €16.19 ex VAT
- Sale price
- €16,19
- Regular price
-
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.

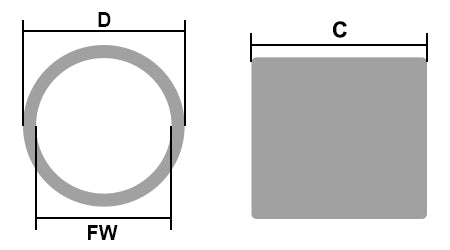

Technical
| Fw | = | 35mm |
| D | = | 45mm |
| C | = | 25mm |
| Dynamic load | = | 34800 N |
| Static load | = | 59700 N |
| Inner race | = | IRT3025 |
| Weight | = | 78 g |
