SKU: TA.4025.Z

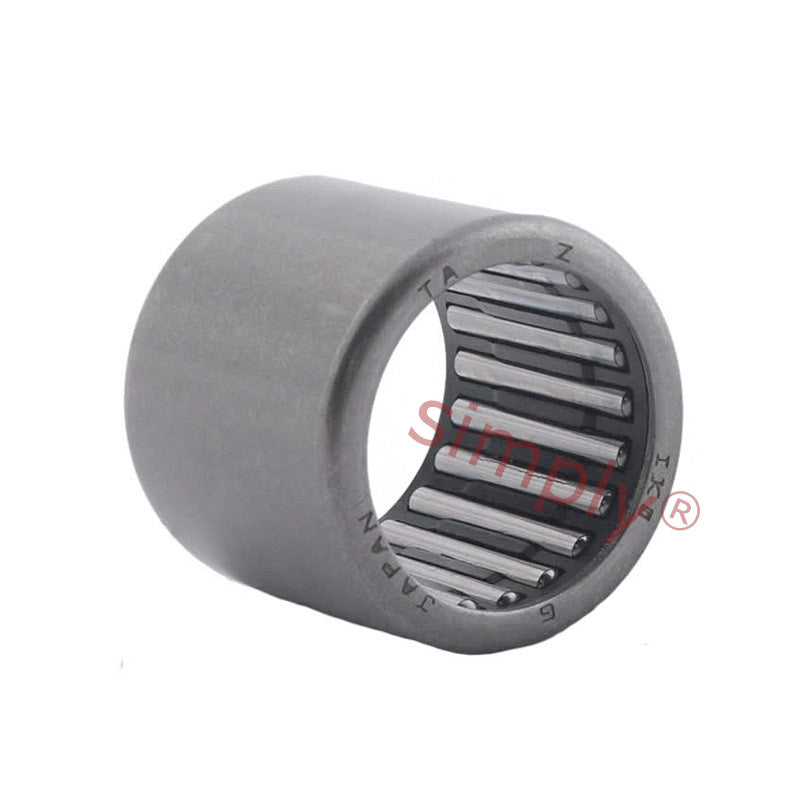

IKO TA4025Z Needle Roller Bearing Open End Type 40x50x25mm
- Regular price
- €16.91 ex VAT
- Sale price
- €16,91
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
10
€15.05
19
€14.20
29
€14.04
39
€13.87
49
€13.70
74
€13.53
99
€12.68
199
€12.51
249
€12.34
499
€12.18
999
€11.84
Description
IKO TA Series Shell Type Drawn Cup Needle Roller Bearings: As the name suggests are needle roller bearings with deep drawn thin-walled outer rings with open ends. They are characterized by low sectional height and high load-carrying ability. They are ideal where a very compact and economical bearing arrangement is required
Benefits: Compact low cross-section design, high load bearing, low cost and economical, Requires only a bored housing for deployment, the simplest of housing designs.
Technical
| Fw | = | 40mm |
| D | = | 50mm |
| C | = | 25mm |
| Dynamic load | = | 36600 N |
| Static load | = | 66200 N |
| Inner race | = | IRT3525 |
| Weight | = | 69.5 g |
