SKU: TBS-D-06B-17

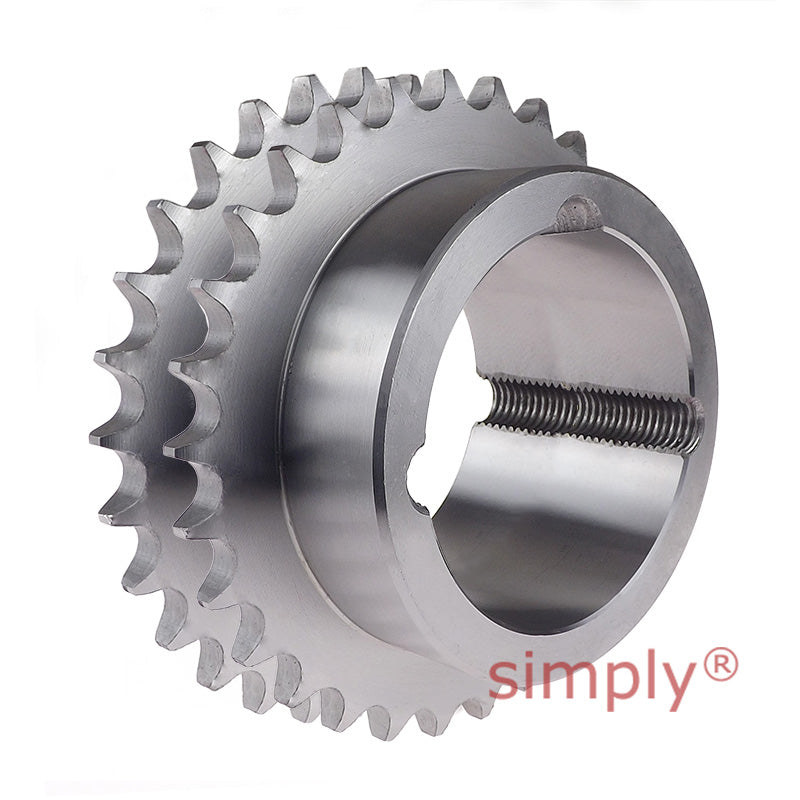

17 Tooth 06B Duplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
- Regular price
- €14.56 ex VAT
- Sale price
- €14,56
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
€12.96
9
€12.23
19
€12.08
29
€11.94
49
€11.79
74
€11.65
99
€10.92
199
€10.77
249
€10.63
499
€10.48
999
€10.19
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| Tooth Radius r3 | = | 10mm |
| Chamfer c | = | 1mm |
| Tooth Width b1 | = | 5.2mm |
| Tooth Width B1 | = | 5.3mm |
| Tooth Width B2 | = | 15.4mm |
| Tooth Width B3 | = | 25.6mm |
| Pitch | = | 9.525mm |
| Width Between Inner | = | 5.72mm |
| Roller Diameter | = | 6.35mm |
| No. of Teeth | = | 17 |
| Outer Diameter de | = | 55.3mm |
| Pitch Diameter dp | = | 51.83mm |
| Hub Diameter dm | = | 41*mm |
| Length Through Bore A | = | 22mm |
| Reference | = | 32-17 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1008+tapered+locking+bush> | = | 1008 Click Here< |
| /a> | = |
