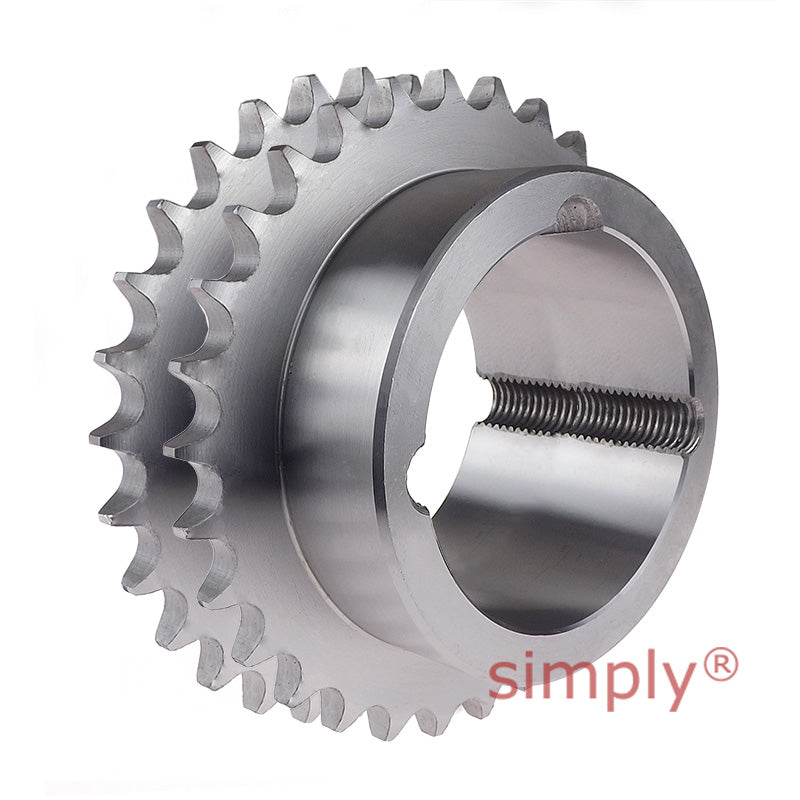

25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

SKU: TBS-D-08B-25

25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€27.30 ex VAT
€27,30
ex VAT
Equivalent to: TS42-25 08B2 TS41-25 41-25
Not in stock

Quantity Price Breaks

5 €24.30
9 €22.93
19 €22.66
29 €22.39
49 €22.11
74 €21.84
99 €20.48
199 €20.20
249 €19.93
499 €19.66
999 €19.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)
SKU: TBS-D-08B-25

25 Tooth 08B Duplex Sprocket Tapered Locking Bush Type for 1/2 inch Pitch Chain (Bush not Incl.)

€27.30 ex VAT
€27,30
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 13mm
Chamfer c = 1.3mm
Tooth Width b1 = 7mm
Tooth Width B1 = 7.2mm
Tooth Width B2 = 21mm
Tooth Width B3 = 34.9mm
Pitch = 12.7mm
Width Between Inner = 7.75mm
Roller Diameter = 8.51mm
No. of Teeth = 25
Outer Diameter de = 105.8mm
Pitch Diameter dp = 101.33mm
Hub Diameter dm = 87mm
Length Through Bore A = 32mm
Reference = 42-25
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2012+tapered+locking+bush> = 2012 Click Here<
/a> =
