SKU: TBS-D-10B-25-R-2017

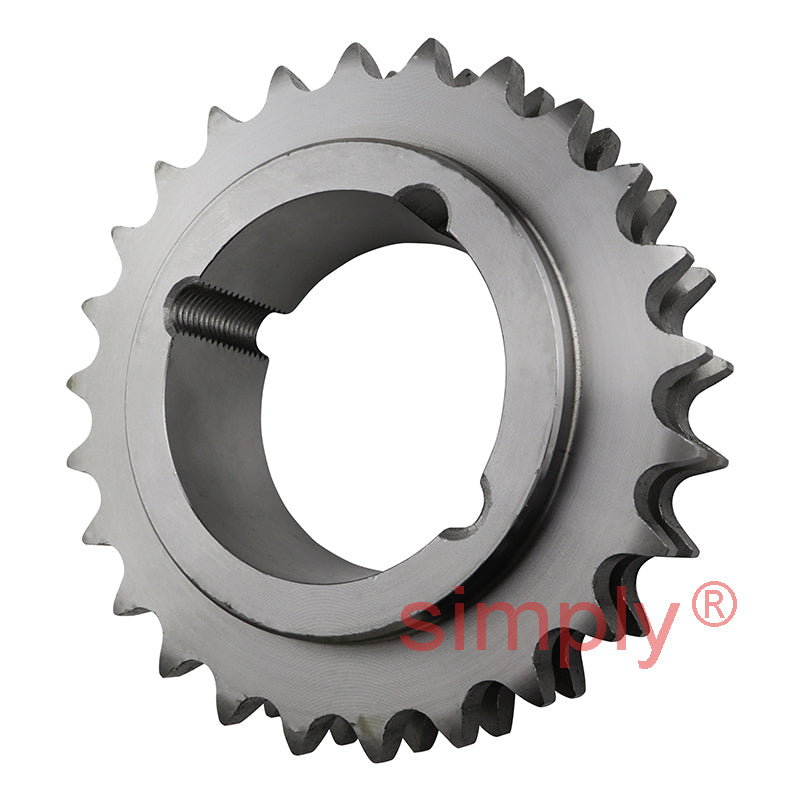

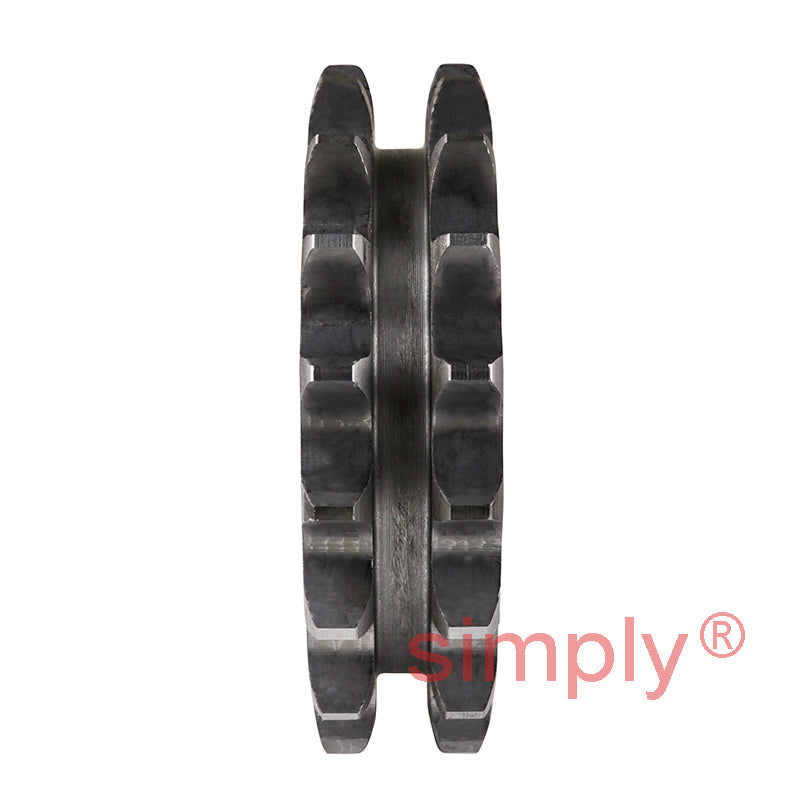

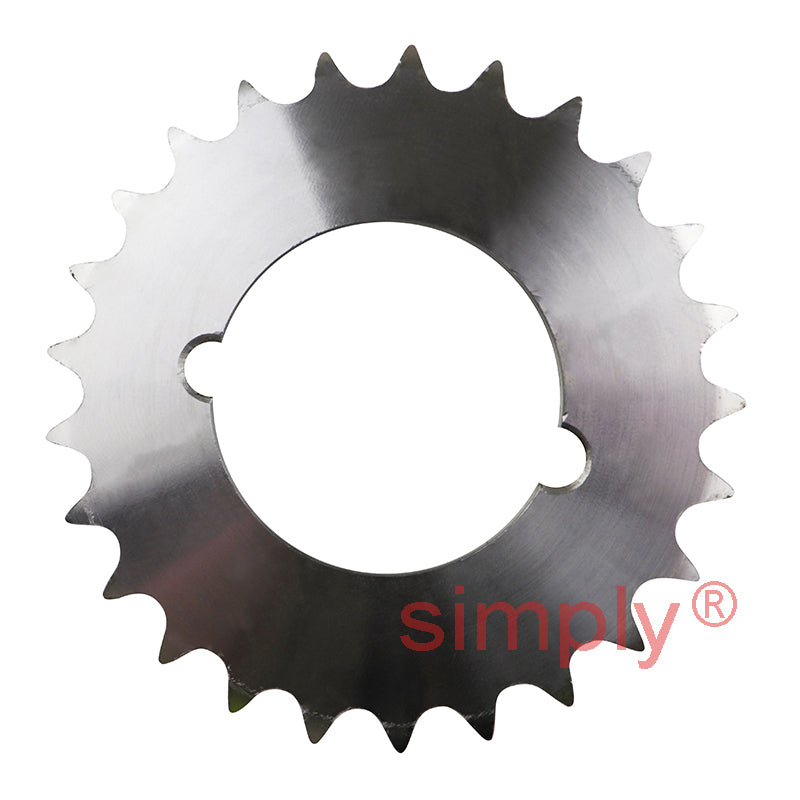

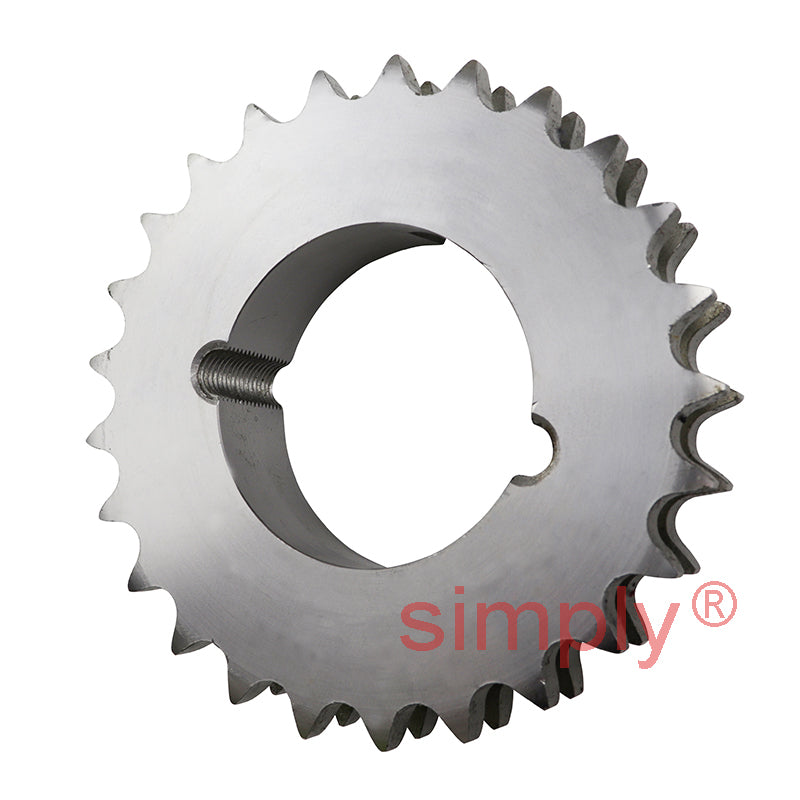

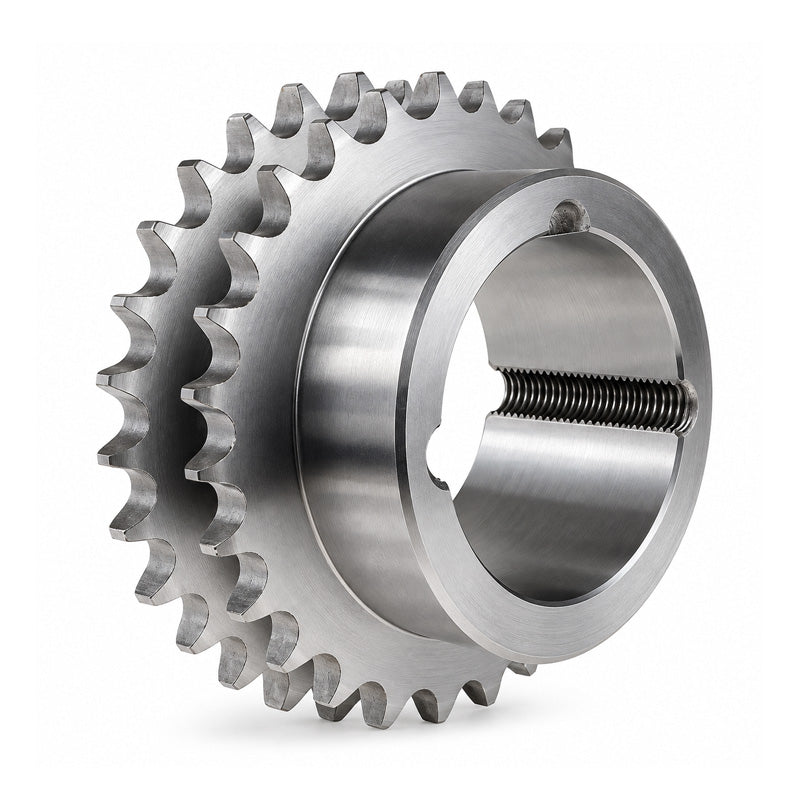

25 Tooth 10B Duplex Reverse Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-
Not in stock
Quantity Price Breaks
10
€69.36
19
€65.46
29
€64.68
39
€63.90
49
€63.12
74
€62.34
99
€58.45
199
€57.67
249
€56.89
499
€56.11
999
€54.55
SKU:
TBS-D-10B-25-R-2017
25 Tooth 10B Duplex Reverse Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
- Regular price
- €77.93 ex VAT
- Sale price
- €77,93
- Regular price
-

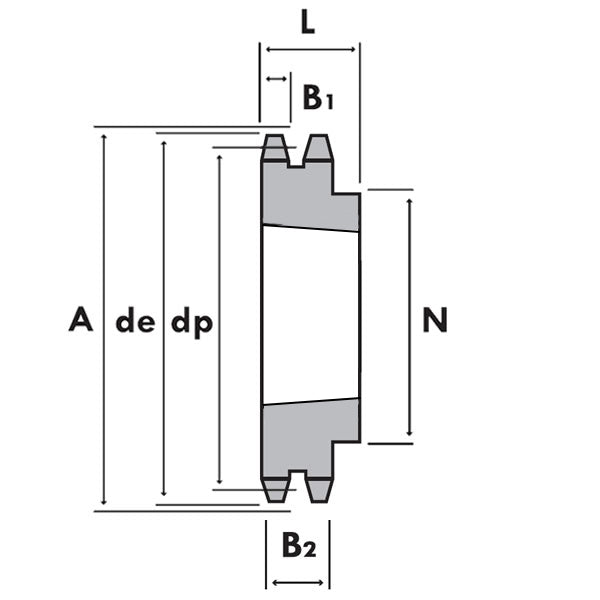

Technical
| Tooth Radius r3 | = | 16mm |
| Chamfer c | = | 1.6mm |
| Tooth Width b1 | = | 9mm |
| Tooth Width B1 | = | 9.1mm |
| Tooth Width B2 | = | 25.5mm |
| Tooth Width B3 | = | 42.1mm |
| Pitch | = | 15.875mm |
| Width Between Inner | = | 9.65mm |
| Roller Diameter | = | 10.16mm |
| No. of Teeth | = | 25 |
| Outer Diameter de | = | 134mm |
| Pitch Diameter dp | = | 126.66mm |
| Hub Diameter dm | = | 90mm |
| Length Through Bore A | = | 32mm |
| Reference | = | 52-25 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=2017+tapered+locking+bush> | = | 2017 Click Here< |
| /a> | = |
