SKU: TBS-D-12B-23

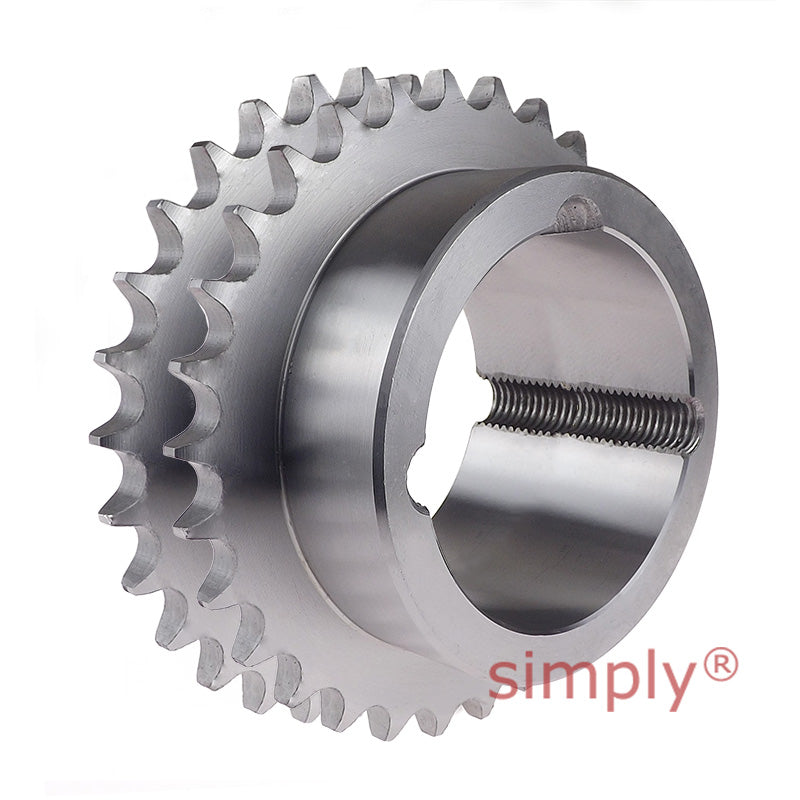

23 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €54.76 ex VAT
- Sale price
- €54,76
- Regular price
-
In stock
Quantity Price Breaks
5
€48.74
9
€46.00
19
€45.45
29
€44.90
49
€44.36
74
€43.81
99
€41.07
199
€40.52
249
€39.97
499
€39.43
999
€38.33
SKU:
TBS-D-12B-23
23 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €54.76 ex VAT
- Sale price
- €54,76
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 23 |
| Pitch Diameter dp | = | 139.9mm |
| Outer Diameter de | = | 149mm |
| Diameter Over Chain A | = | 157mm |
| Hub Diameter N | = | 108mm |
| Tooth Width B2 | = | 30.3mm |
| Bore Length L | = | 44.5mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2517+taperlock" | = | > |
| 2517< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 3.157 kg | = | N/A |
