SKU: TBS-D-12B-30

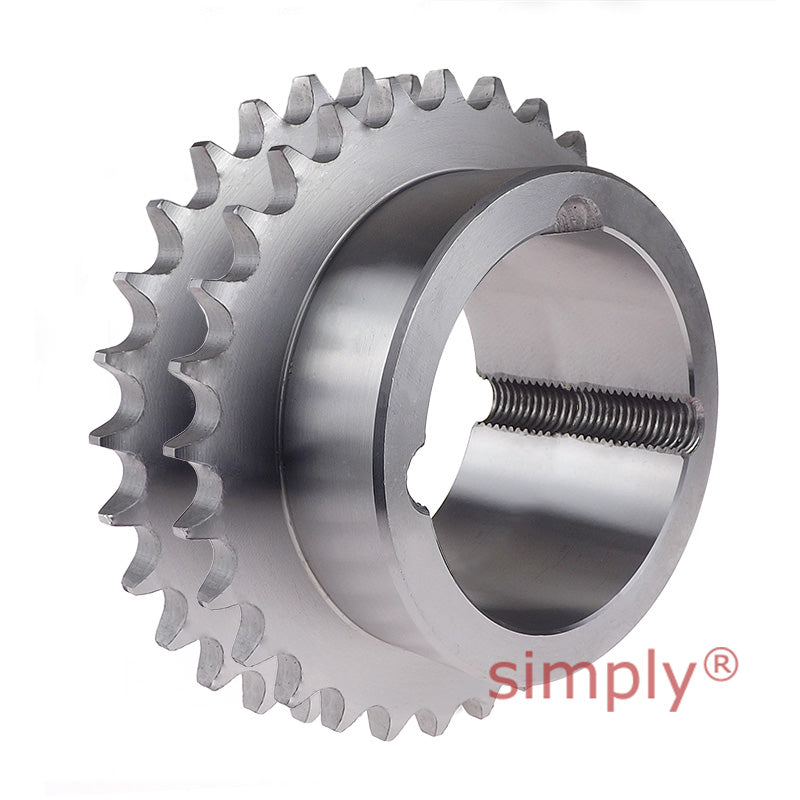

30 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €79.35 ex VAT
- Sale price
- €79,35
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
€70.62
9
€66.65
19
€65.86
29
€65.07
49
€64.27
74
€63.48
99
€59.51
199
€58.72
249
€57.93
499
€57.13
999
€55.55
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 30 |
| Pitch Diameter dp | = | 182.25mm |
| Outer Diameter de | = | 191mm |
| Diameter Over Chain A | = | 197mm |
| Hub Diameter N | = | 130mm |
| Tooth Width B2 | = | 30.3mm |
| Bore Length L | = | 44.5mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=2517+taperlock" | = | > |
| 2517< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 5.033 kg | = | N/A |
