SKU: TBS-D-12B-76
76 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €336.81 ex VAT
- Sale price
- €336,81
- Regular price
-
Not in stock
Quantity Price Breaks
5
€299.76
9
€282.92
19
€279.55
29
€276.18
49
€272.82
74
€269.45
99
€252.61
199
€249.24
249
€245.87
499
€242.50
999
€235.77
SKU:
TBS-D-12B-76
76 Tooth 12B Duplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €336.81 ex VAT
- Sale price
- €336,81
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

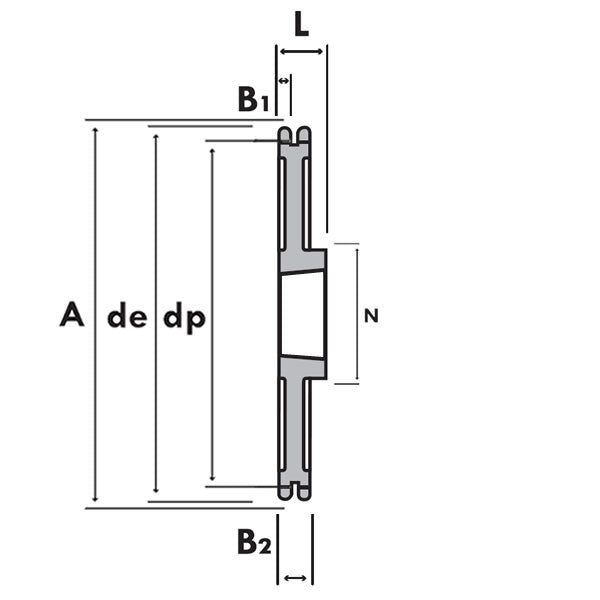

Technical
| No. of Teeth | = | 76 |
| Pitch Diameter dp | = | 460.98mm |
| Outer Diameter de | = | 470mm |
| Diameter Over Chain A | = | 478mm |
| Hub Diameter N | = | 160mm |
| Tooth Width B2 | = | 30.3mm |
| Bore Length L | = | 50.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=3020+taperlock" | = | > |
| 3020< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 29.316 kg | = | N/A |
