57 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

SKU: TBS-D-16B-57

57 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€507.98 ex VAT
€507,98
ex VAT
Equivalent to: 16B2 TS82-57 82-57
Not in stock

Quantity Price Breaks

5 €452.10
9 €426.70
19 €421.62
29 €416.54
49 €411.46
74 €406.38
99 €380.99
199 €375.91
249 €370.83
499 €365.75
999 €355.59
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
57 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
SKU: TBS-D-16B-57

57 Tooth 16B Duplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€507.98 ex VAT
€507,98
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

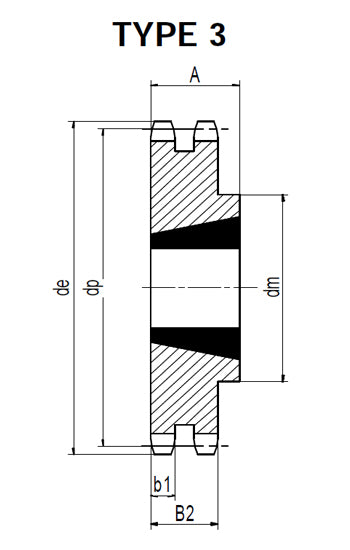

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 57
Outer Diameter de = 474mm
Pitch Diameter dp = 461.07mm
Hub Diameter dm = 175mm
Length Through Bore A = 89mm
Reference = 82-57
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=3535+tapered+locking+bush> = 3535 Click Here<
/a> =
