SKU: TBS-DS-10B-17

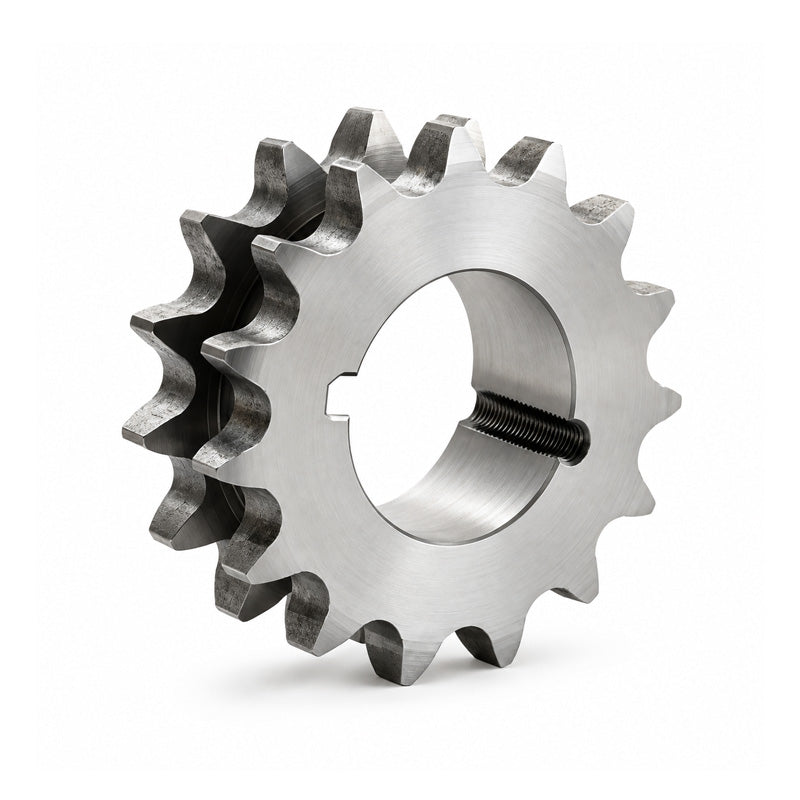

17 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €31.20 ex VAT
- Sale price
- €31,20
- Regular price
-
In stock
Quantity Price Breaks
5
€27.77
9
€26.21
19
€25.90
29
€25.58
49
€25.27
74
€24.96
99
€23.40
199
€23.09
249
€22.78
499
€22.46
999
€21.84
SKU:
TBS-DS-10B-17
17 Tooth 10B Tapered Bore Double Simplex Sprocket 5/8 inch Pitch Chain
- Regular price
- €31.20 ex VAT
- Sale price
- €31,20
- Regular price
-
Description
Tapered Bore Double Simplex Sprockets: Small sprockets are usually manufactured from C45 Steel. These taper bore double simplex sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end-user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical
| No. of Teeth | = | 17 |
| Pitch Diameter dp | = | 86.39mm |
| Outer Diameter de | = | 93mm |
| Hub Diameter N | = | 70mm |
| Width B | = | 36.5mm |
| Chamfer C | = | 1.6mm |
| Tooth Radius r3 | = | 16mm |
| Tooth Width b1 | = | 9.2mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=1610+taperlock" | = | > |
| 1610< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 0.56 kg | = | N/A |
