SKU: TBS-S-06B-23

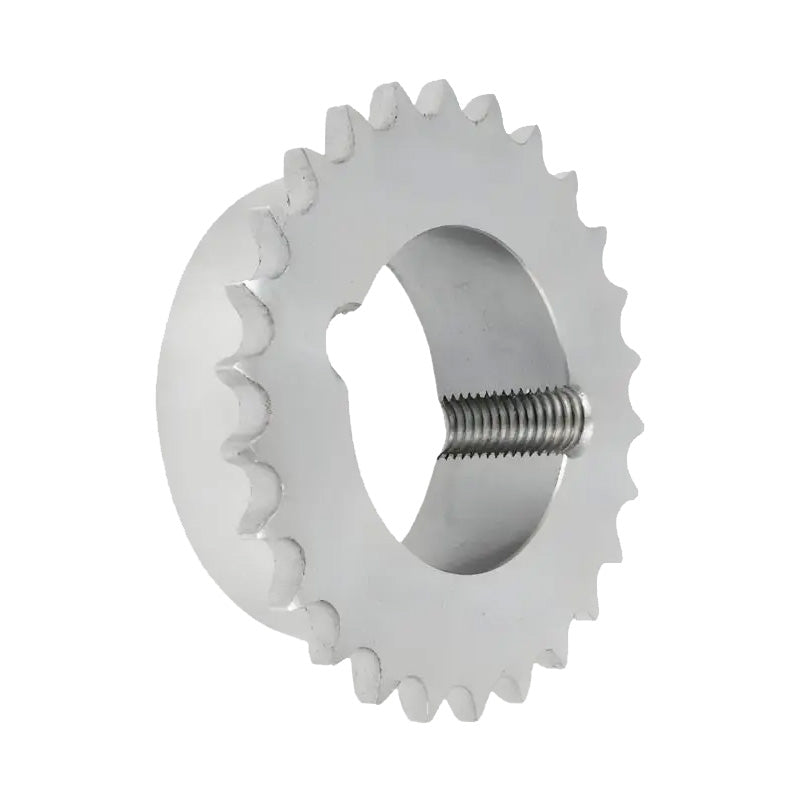

23 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
- Regular price
- €16.02 ex VAT
- Sale price
- €16,02
- Regular price
-
In stock
Quantity Price Breaks
5
€14.26
9
€13.46
19
€13.30
29
€13.14
49
€12.98
74
€12.82
99
€12.02
199
€11.85
249
€11.69
499
€11.53
999
€11.21
SKU:
TBS-S-06B-23
23 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
- Regular price
- €16.02 ex VAT
- Sale price
- €16,02
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

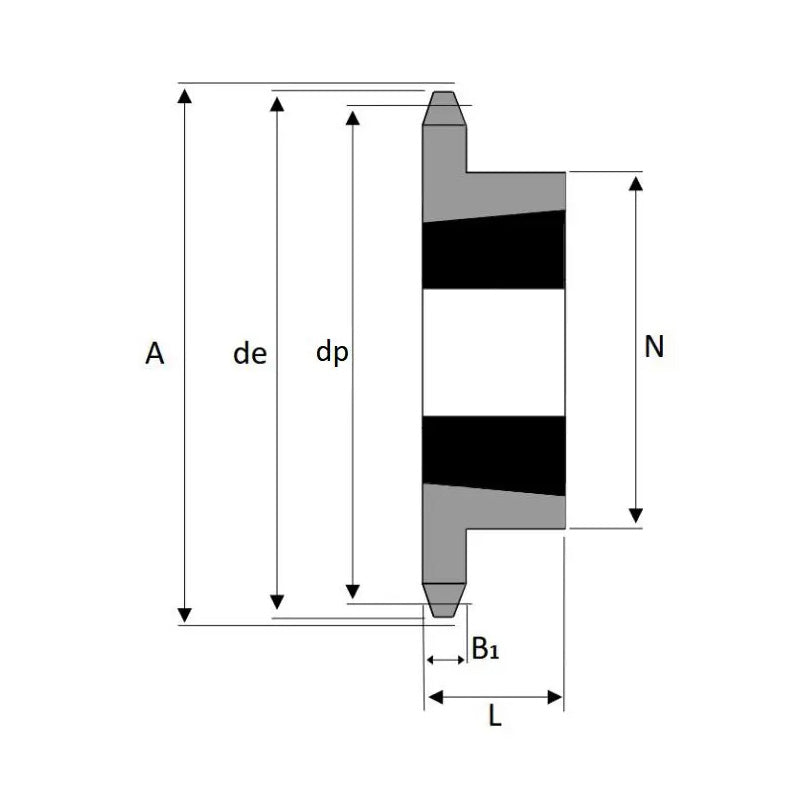

Technical
| Tooth Radius r3 | = | 10mm |
| Chamfer c | = | 1mm |
| Tooth Width b1 | = | 5.2mm |
| Tooth Width B1 | = | 5.3mm |
| Tooth Width B2 | = | 15.4mm |
| Tooth Width B3 | = | 25.6mm |
| Pitch | = | 9.525mm |
| Width Between Inner | = | 5.72mm |
| Roller Diameter | = | 6.35mm |
| No. of Teeth | = | 23 |
| Outer Diameter de | = | 73.5mm |
| Pitch Diameter dp | = | 69.95mm |
| Hub Diameter dm | = | 63*mm |
| Length Through Bore A | = | 25mm |
| Reference | = | 31-23 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=1210+tapered+locking+bush> | = | 1210 Click Here< |
| /a> | = |
