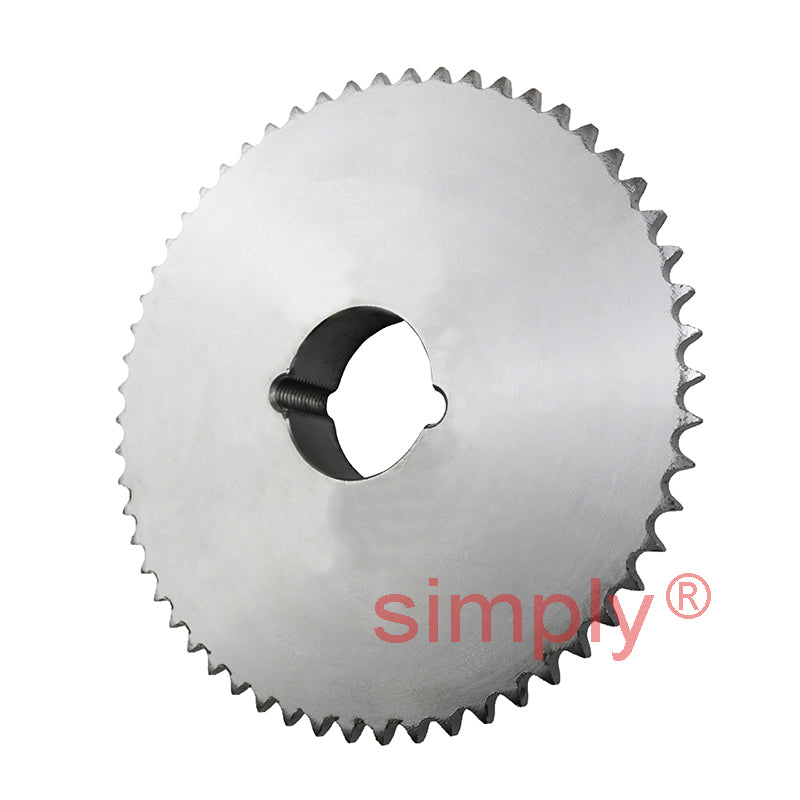

57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

SKU: TBS-S-06B-57

57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€35.10 ex VAT
€35,10
ex VAT
Equivalent to: TS31-57 06B1 TS31-57 31-57
In stock

Quantity Price Breaks

5 €31.24
9 €29.48
19 €29.13
29 €28.78
49 €28.43
74 €28.08
99 €26.33
199 €25.97
249 €25.62
499 €25.27
999 €24.57
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.
SKU: TBS-S-06B-57

57 Tooth 06B Simplex Sprocket Tapered Locking Bush Type for 3/8 inch Pitch Chain - Bush not Incl.

€35.10 ex VAT
€35,10
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

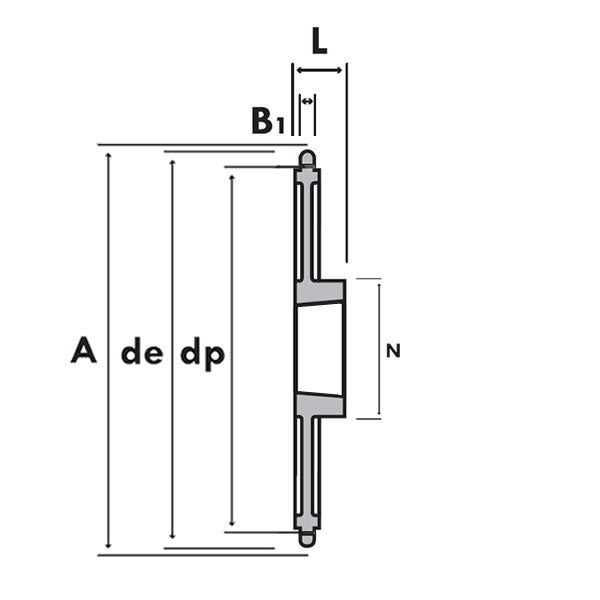

Technical

Tooth Radius r3 = 10mm
Chamfer c = 1mm
Tooth Width b1 = 5.2mm
Tooth Width B1 = 5.3mm
Tooth Width B2 = 15.4mm
Tooth Width B3 = 25.6mm
Pitch = 9.525mm
Width Between Inner = 5.72mm
Roller Diameter = 6.35mm
No. of Teeth = 57
Outer Diameter de = 176.9mm
Pitch Diameter dp = 172.91mm
Hub Diameter dm = 70mm
Length Through Bore A = 25mm
Reference = 31-57
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1210+tapered+locking+bush> = 1210 Click Here<
/a> =
