15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

SKU: TBS-S-10B-15

15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€16.91 ex VAT
€16,91
ex VAT
Equivalent to: TS51-15 10B1 TS51-15 51-15
In stock

Quantity Price Breaks

5 €15.05
9 €14.20
19 €14.04
29 €13.87
49 €13.70
74 €13.53
99 €12.68
199 €12.51
249 €12.34
499 €12.18
999 €11.84
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
SKU: TBS-S-10B-15

15 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€16.91 ex VAT
€16,91
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

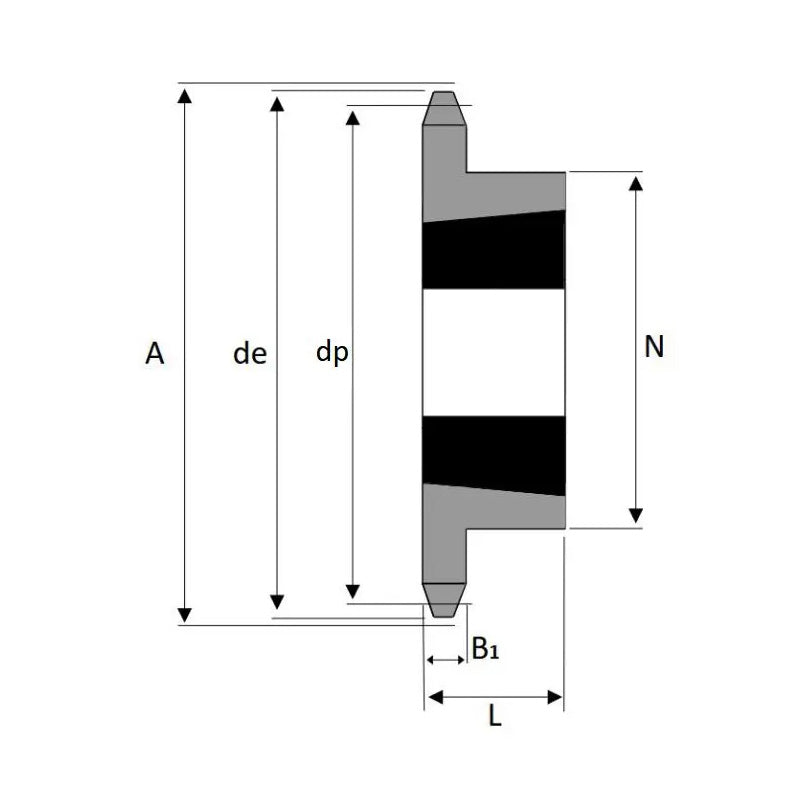

Technical

Tooth Radius r3 = 16mm
Chamfer c = 1.6mm
Tooth Width b1 = 9mm
Tooth Width B1 = 9.1mm
Tooth Width B2 = 25.5mm
Tooth Width B3 = 42.1mm
Pitch = 15.875mm
Width Between Inner = 9.65mm
Roller Diameter = 10.16mm
No. of Teeth = 15
Outer Diameter de = 83mm
Pitch Diameter dp = 76.36mm
Hub Diameter dm = 60*mm
Length Through Bore A = 25mm
Reference = 51-15
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1210+tapered+locking+bush> = 1210 Click Here<
/a> =
