SKU: TBS-S-10B-76

76 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€113.01 ex VAT
€113,01
ex VAT
Equivalent to: TS51-76 10B1 TS51-76 51-76
In stock

Quantity Price Breaks

5 €100.58
9 €94.93
19 €93.80
29 €92.67
49 €91.54
74 €90.41
99 €84.76
199 €83.63
249 €82.50
499 €81.37
999 €79.11
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
76 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
76 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
76 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
SKU: TBS-S-10B-76

76 Tooth 10B Simplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€113.01 ex VAT
€113,01
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

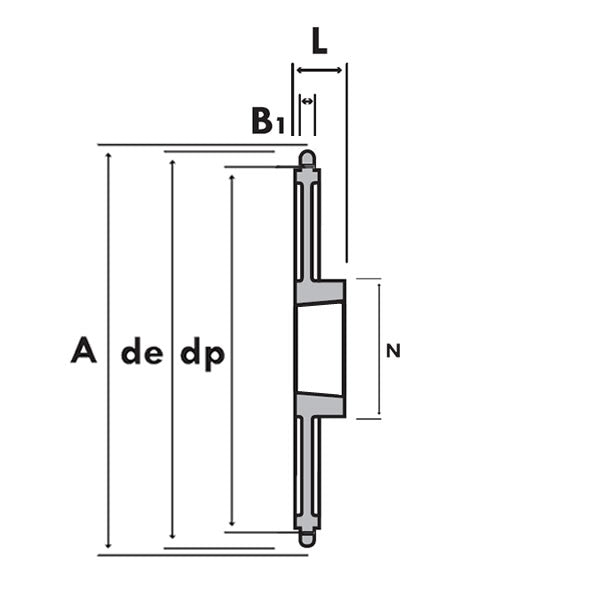

Technical

Tooth Radius r3 = 16mm
Chamfer c = 1.6mm
Tooth Width b1 = 9mm
Tooth Width B1 = 9.1mm
Tooth Width B2 = 25.5mm
Tooth Width B3 = 42.1mm
Pitch = 15.875mm
Width Between Inner = 9.65mm
Roller Diameter = 10.16mm
No. of Teeth = 76
Outer Diameter de = 392.1mm
Pitch Diameter dp = 384.16mm
Hub Diameter dm = 100mm
Length Through Bore A = 32mm
Reference = 51-76
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2012+tapered+locking+bush> = 2012 Click Here<
/a> =
