SKU: TBS-S-16B-13

13 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

€23.39 ex VAT
€23,39
ex VAT
Equivalent to: 16B1 TS81-13 81-13
In stock

Quantity Price Breaks

5 €20.82
9 €19.65
19 €19.41
29 €19.18
49 €18.95
74 €18.71
99 €17.54
199 €17.31
249 €17.07
499 €16.84
999 €16.37
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
13 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
13 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
13 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
SKU: TBS-S-16B-13

13 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

€23.39 ex VAT
€23,39
ex VAT

Description

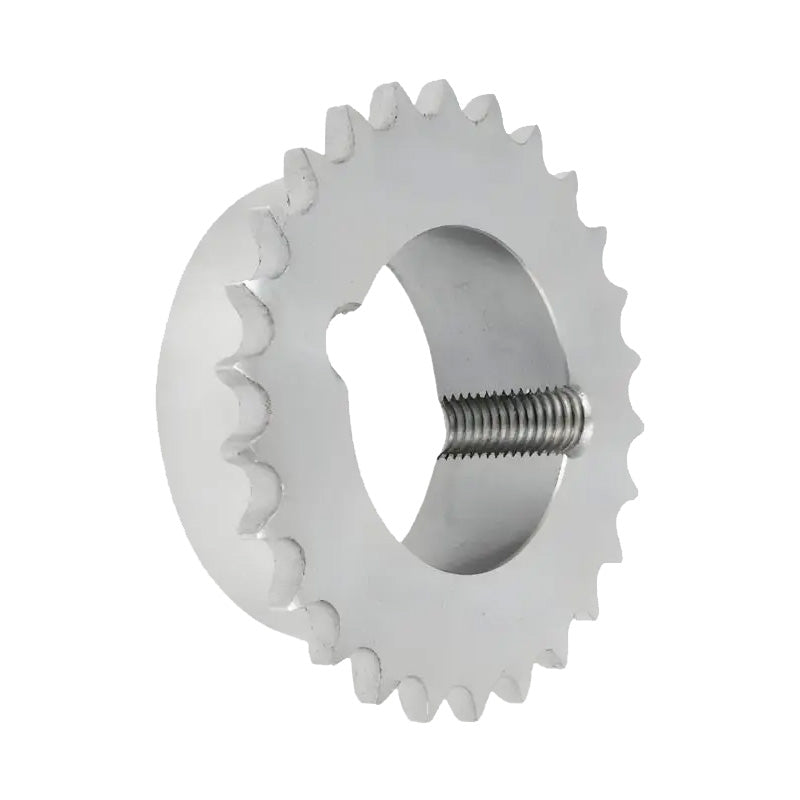

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

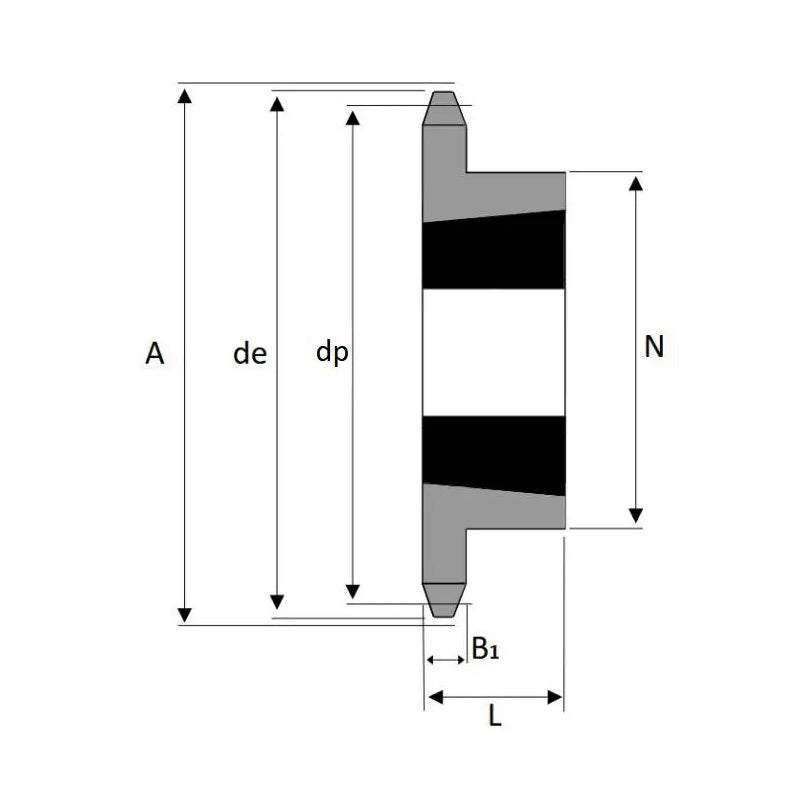

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 13
Outer Diameter de = 117mm
Pitch Diameter dp = 106.12mm
Hub Diameter dm = 73mm
Length Through Bore A = 38mm
Reference = 81-13
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=1615+tapered+locking+bush> = 1615 Click Here<
/a> =
