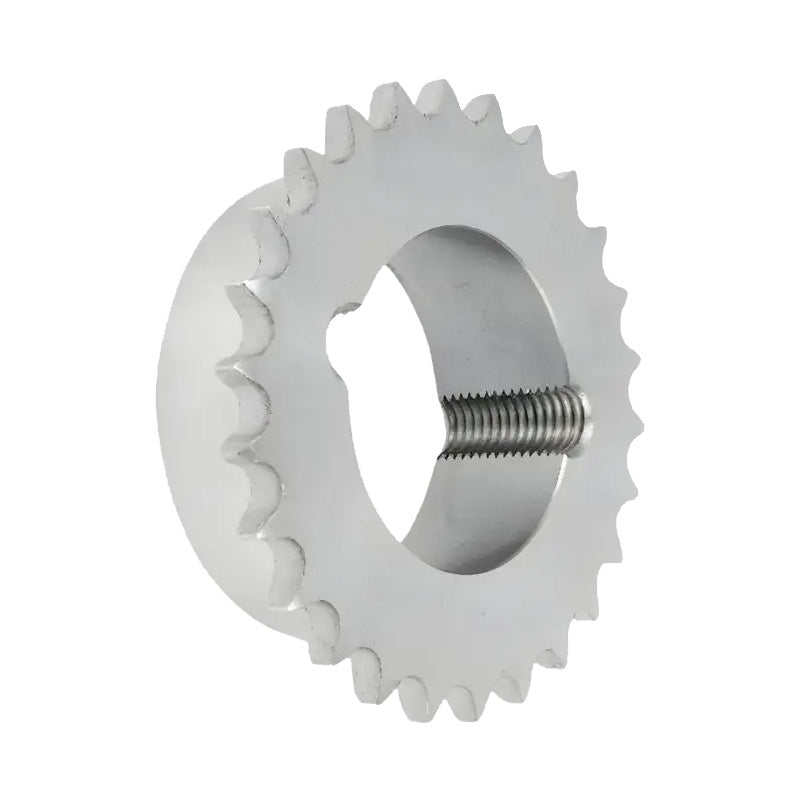

22 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

SKU: TBS-S-16B-22

22 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

€64.08 ex VAT
€64,08
ex VAT
Equivalent to: 16B1 TS81-22 81-22
In stock

Quantity Price Breaks

5 €57.03
9 €53.83
19 €53.19
29 €52.55
49 €51.90
74 €51.26
99 €48.06
199 €47.42
249 €46.78
499 €46.14
999 €44.86
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
22 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
SKU: TBS-S-16B-22

22 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.

€64.08 ex VAT
€64,08
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

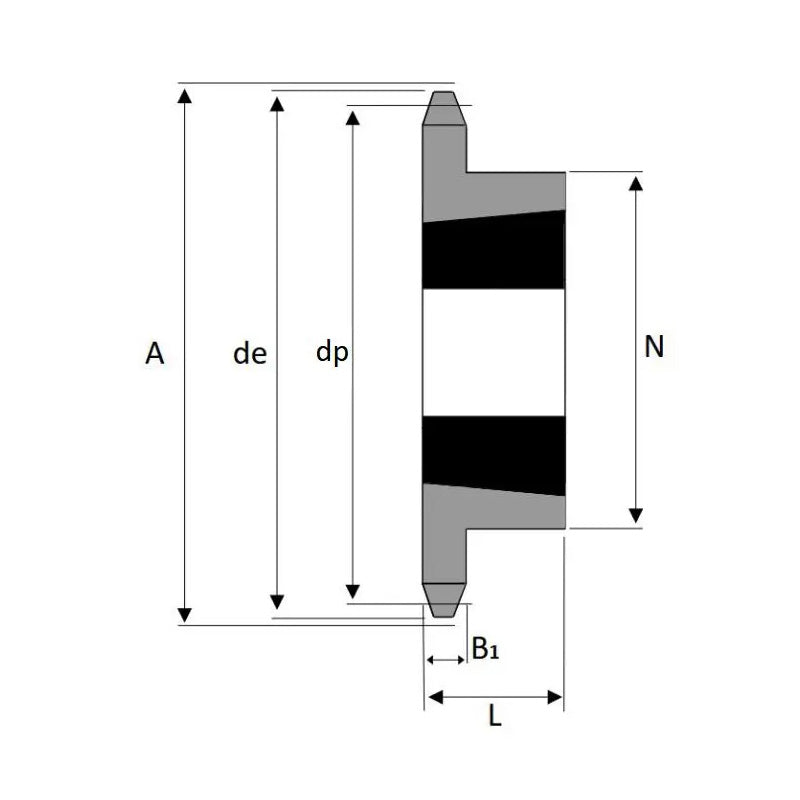

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 22
Outer Diameter de = 189.3mm
Pitch Diameter dp = 178.48mm
Hub Diameter dm = 110mm
Length Through Bore A = 45mm
Reference = 81-22
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=2517+tapered+locking+bush> = 2517 Click Here<
/a> =
