SKU: TBS-S-16B-30
30 Tooth 16B Simplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain Bush not Incl.
- Regular price
- €115.63 ex VAT
- Sale price
- €115,63
- Regular price
-
ex VAT
In stock
Quantity Price Breaks
5
€102.91
9
€97.13
19
€95.97
29
€94.82
49
€93.66
74
€92.50
99
€86.72
199
€85.57
249
€84.41
499
€83.25
999
€80.94
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

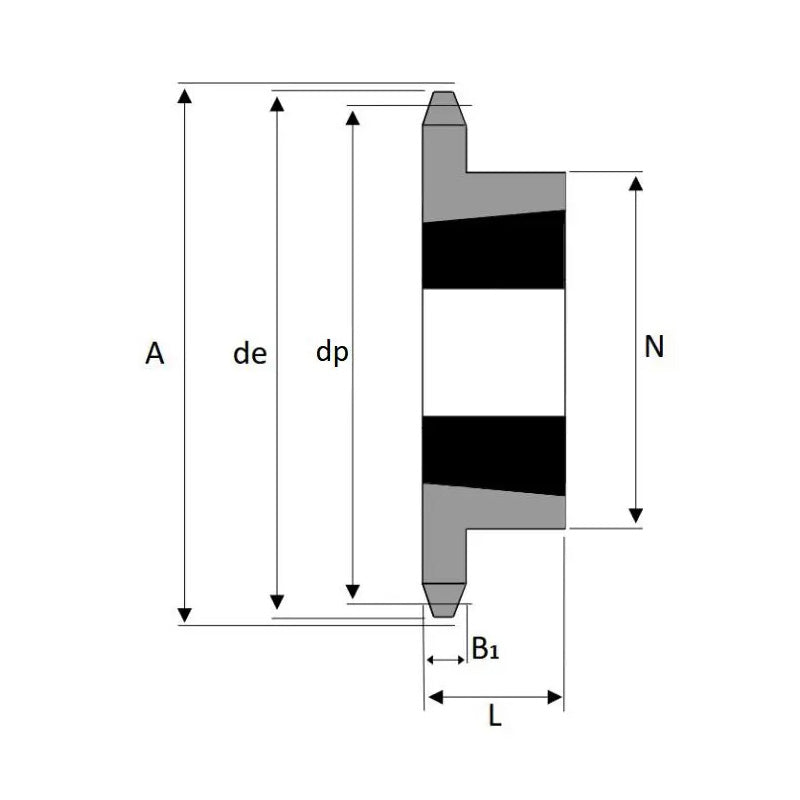

Technical
| Tooth Radius r3 | = | 26mm |
| Chamfer c | = | 2.5mm |
| Tooth Width b1 | = | 15.8mm |
| Tooth Width B1 | = | 16.2mm |
| Tooth Width B2 | = | 47.7mm |
| Tooth Width B3 | = | 79.6mm |
| Pitch | = | 25.4mm |
| Width Between Inner | = | 17.02mm |
| Roller Diameter | = | 15.88mm |
| No. of Teeth | = | 30 |
| Outer Diameter de | = | 254mm |
| Pitch Diameter dp | = | 243mm |
| Hub Diameter dm | = | 140mm |
| Length Through Bore A | = | 51mm |
| Reference | = | 81-30 |
| Taper Bush | = | < |
| a href=advanced_search_result.php?sort=2a& | = | search_in_description=1& |
| keywords=3020+tapered+locking+bush> | = | 3020 Click Here< |
| /a> | = |
