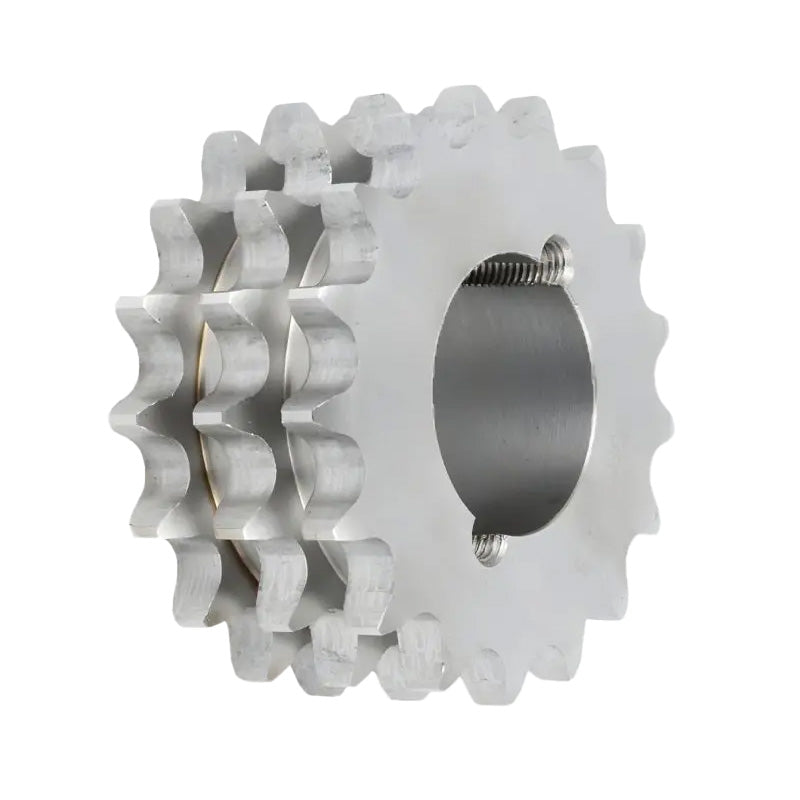

21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-10B-21

21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€40.69 ex VAT
€40,69
ex VAT
Equivalent to: TS53-21 10B3 TS51-21 51-21
In stock

Quantity Price Breaks

5 €36.21
9 €34.18
19 €33.77
29 €33.37
49 €32.96
74 €32.55
99 €30.52
199 €30.11
249 €29.70
499 €29.30
999 €28.48
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-10B-21

21 Tooth 10B Triplex Sprocket Tapered Locking Bush Type for 5/8 inch Pitch Chain (Bush not Incl.)

€40.69 ex VAT
€40,69
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 16mm
Chamfer c = 1.6mm
Tooth Width b1 = 9mm
Tooth Width B1 = 9.1mm
Tooth Width B2 = 25.5mm
Tooth Width B3 = 42.1mm
Pitch = 15.875mm
Width Between Inner = 9.65mm
Roller Diameter = 10.16mm
No. of Teeth = 21
Outer Diameter de = 113.4mm
Pitch Diameter dp = 106.52mm
Length Through Bore A = 42.1mm
Reference = 53-21
Taper Bush = <
