SKU: TBS-T-12B-45
45 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €211.09 ex VAT
- Sale price
- €211,09
- Regular price
-
In stock
Quantity Price Breaks
5
€187.87
9
€177.32
19
€175.20
29
€173.09
49
€170.98
74
€168.87
99
€158.32
199
€156.21
249
€154.10
499
€151.98
999
€147.76
SKU:
TBS-T-12B-45
45 Tooth 12B Triplex Sprocket Tapered Locking Bush Type for 3/4 inch Pitch Chain (Bush not Incl.)
- Regular price
- €211.09 ex VAT
- Sale price
- €211,09
- Regular price
-
Description
Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.
Technical

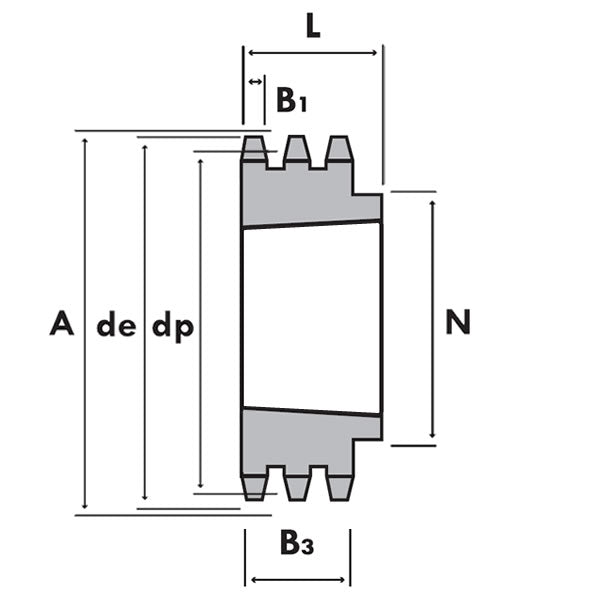

| No. of Teeth | = | 45 |
| Pitch Diameter dp | = | 273.1mm |
| Outer Diameter de | = | 283mm |
| Diameter Over Chain A | = | 291mm |
| Hub Diameter N | = | 140mm |
| Tooth Width B3 | = | 49.8mm |
| Bore Length L | = | 50.8mm |
| Taper Bush Series | = | < |
| a href=" | = | advanced_search_result.php?& |
| keywords=3020+taperlock" | = | > |
| 3020< | = | span style=" |
| color:blue" | = | > |
| Click Here< | = | /span> |
| < | = | /a> |
| = | Weight | |
| 16.485 kg | = | N/A |
