SKU: TBS-T-16B-27

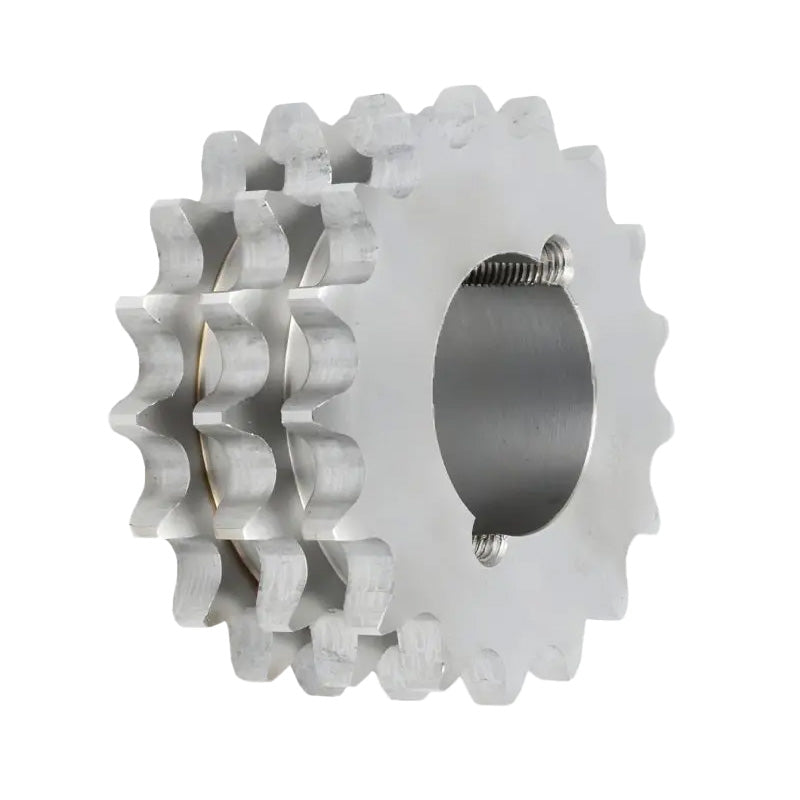

27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€208.54 ex VAT
€208,54
ex VAT
Equivalent to: 16B3 TS83-27 83-27
In stock

Quantity Price Breaks

5 €185.60
9 €175.17
19 €173.09
29 €171.00
49 €168.92
74 €166.83
99 €156.41
199 €154.32
249 €152.23
499 €150.15
999 €145.98
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-16B-27

27 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€208.54 ex VAT
€208,54
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 27
Outer Diameter de = 229.6mm
Pitch Diameter dp = 218.79mm
Hub Diameter dm = 175mm
Length Through Bore A = 89mm
Reference = 83-27
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=3535+tapered+locking+bush> = 3535 Click Here<
/a> =
