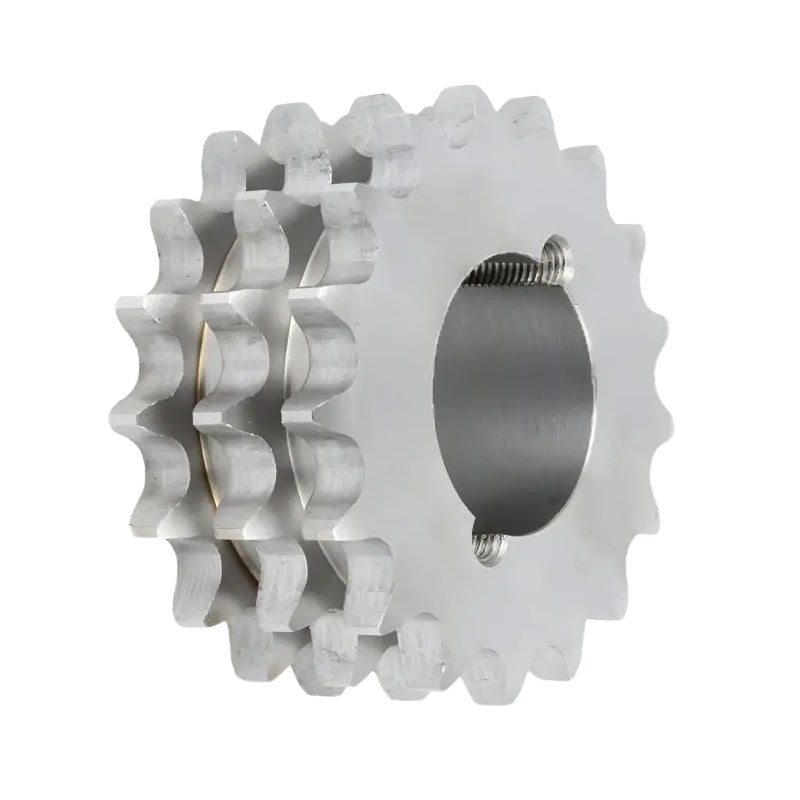

76 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

SKU: TBS-T-16B-76

76 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€1.414.71 ex VAT
€1.414,71
ex VAT
Equivalent to: 16B3 TS83-76 83-76
Not in stock

Quantity Price Breaks

5 €1.259.09
9 €1.188.36
19 €1.174.21
29 €1.160.06
49 €1.145.92
74 €1.131.77
99 €1.061.03
199 €1.046.89
249 €1.032.74
499 €1.018.59
999 €990.30
Return policy
90-Days Free Returns
Learn More
Low cost shipping
International Delivery
Learn More
76 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)
SKU: TBS-T-16B-76

76 Tooth 16B Triplex Sprocket Tapered Locking Bush Type for 1 inch Pitch Chain (Bush not Incl.)

€1.414.71 ex VAT
€1.414,71
ex VAT

Description

Tapered Bore Sprockets: Small sprockets are usually manufactured from C45 Steel and the large sprockets maybe supplied in G22 Cast Iron. These taper bore sprockets accept tapered locking bushes in a wide variety of shaft sizes to allow the end user to easily fit the sprocket to the shaft with minimal effort and no machining.
Available in a comprehensive range of British Standard Simplex, Duplex and Triplex sizes. Pilot Bore variants available if required.
Benefits: Universal on the shelf stock - wide range of tapered locking bushes and shaft sizes available to choose from. Durable and hard-wearing.

Technical

Tooth Radius r3 = 26mm
Chamfer c = 2.5mm
Tooth Width b1 = 15.8mm
Tooth Width B1 = 16.2mm
Tooth Width B2 = 47.7mm
Tooth Width B3 = 79.6mm
Pitch = 25.4mm
Width Between Inner = 17.02mm
Roller Diameter = 15.88mm
No. of Teeth = 76
Outer Diameter de = 627mm
Pitch Diameter dp = 614.65mm
Hub Diameter dm = 215mm
Length Through Bore A = 102mm
Reference = 83-76
Taper Bush = <
a href=advanced_search_result.php?sort=2a& = search_in_description=1&
keywords=4040+tapered+locking+bush> = 4040 Click Here<
/a> =
