SKU: TEN-ARM-SE15-DUN

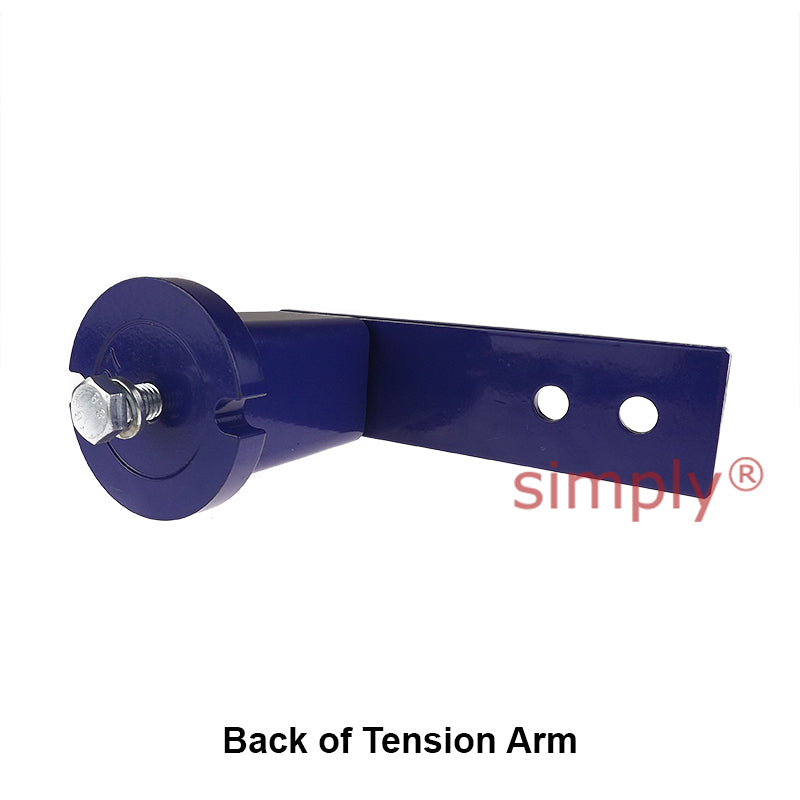

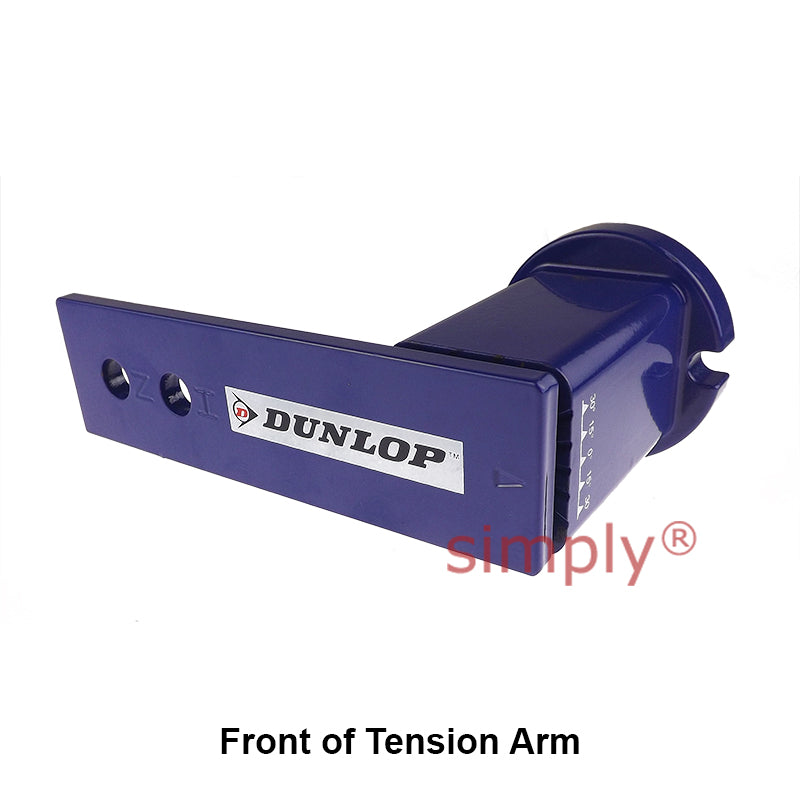

Dunlop SE15 Chain and V-Belt Tension Arm
- Regular price
- €26.99 ex VAT
- Sale price
- €26,99
- Regular price
-
In stock
Quantity Price Breaks
3
€24.02
5
€22.67
9
€22.40
19
€22.13
49
€21.86
74
€21.59
99
€20.24
199
€19.97
249
€19.70
499
€19.43
999
€18.89
SKU:
TEN-ARM-SE15-DUN
Dunlop SE15 Chain and V-Belt Tension Arm
- Regular price
- €26.99 ex VAT
- Sale price
- €26,99
- Regular price
-
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C

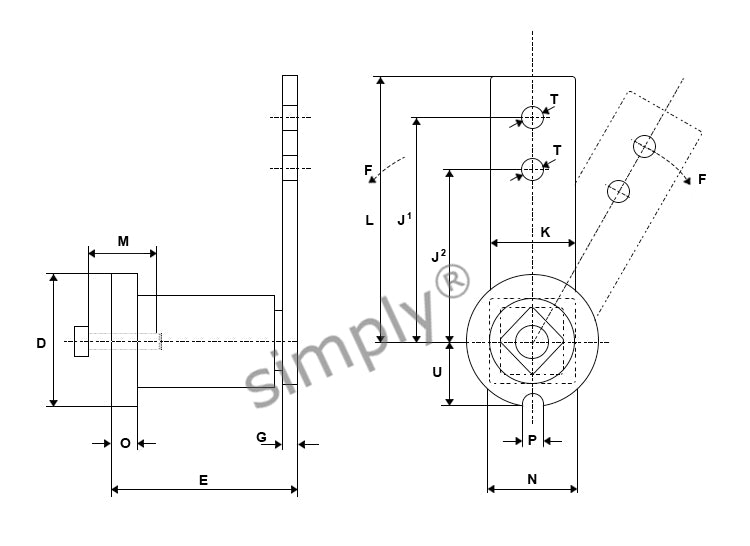

Technical
| Part No. | = | SE15 |
| D | = | 45mm |
| E | = | 64 (+1/-0.5)mm |
| G | = | 5mm |
| H | = | M8 |
| J< | = | sup> |
| 1< | = | /sup> |
| = | 100mm | |
| J< | = | sup> |
| 2< | = | /sup> |
| = | 100mm | |
| K | = | 25mm |
| L | = | 112.5mm |
| M | = | 25mm |
| N | = | 30mm |
| O | = | 8mm |
| P | = | 8.5mm |
| T | = | 10.5mm |
| U | = | 20.8mm |
