SKU: TEN-ARM-SE18-DUN

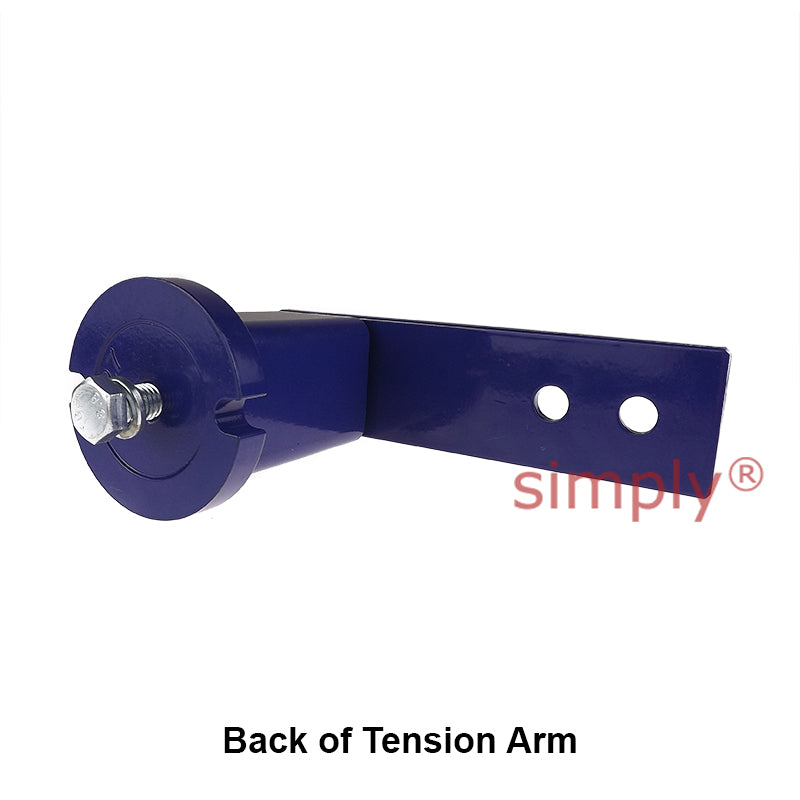

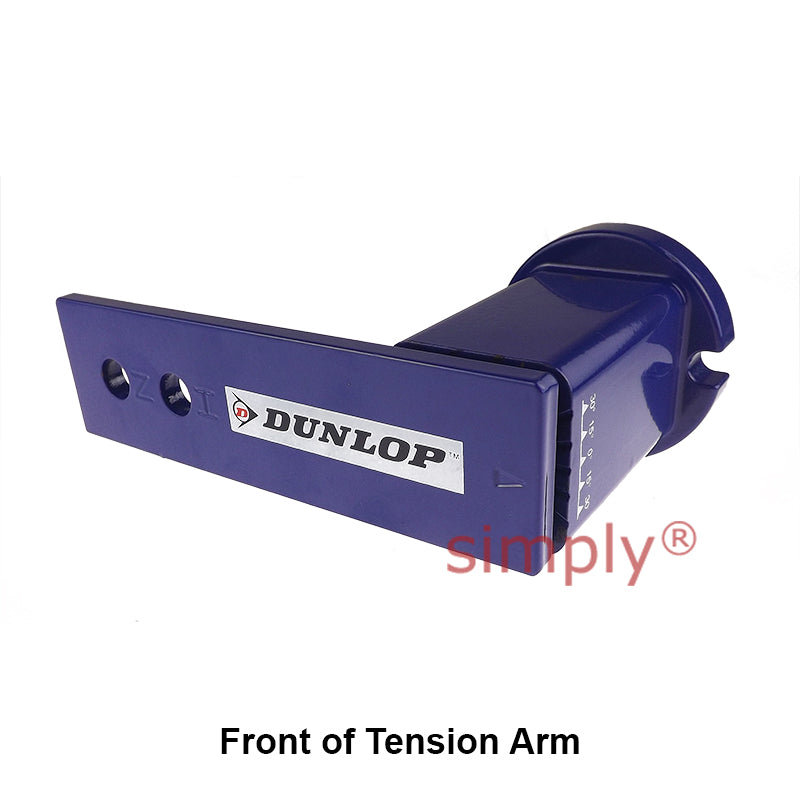

Dunlop SE18 Chain and V-Belt Tension Arm
- Regular price
- €33.03 ex VAT
- Sale price
- €33,03
- Regular price
-
In stock
Quantity Price Breaks
3
€29.40
5
€27.75
9
€27.41
19
€27.08
49
€26.75
74
€26.42
99
€24.77
199
€24.44
249
€24.11
499
€23.78
999
€23.12
SKU:
TEN-ARM-SE18-DUN
Dunlop SE18 Chain and V-Belt Tension Arm
- Regular price
- €33.03 ex VAT
- Sale price
- €33,03
- Regular price
-
Description
Dunlop Chain and V-Belt Tension Arm: The tensioning element with the specification SE (SE 11 to SE 45) is the mostly used standard unit for tensioning all kinds of chain and belt drives.
Benefits: Suitable for applications in temperature range from -40 deg C to +80 deg C
Technical
| Part No. | = | SE18 |
| D | = | 58mm |
| E | = | 79 (+1.5/-0.5)mm |
| G | = | 7mm |
| H | = | M10 |
| J< | = | sup> |
| 1< | = | /sup> |
| = | 100mm | |
| J< | = | sup> |
| 2< | = | /sup> |
| = | 100mm | |
| K | = | 30mm |
| L | = | 115mm |
| M | = | 30mm |
| N | = | 35mm |
| O | = | 10.5mm |
| P | = | 8.5mm |
| T | = | 10.5mm |
| U | = | 25.3mm |
