SKU: THAP300E-SKF

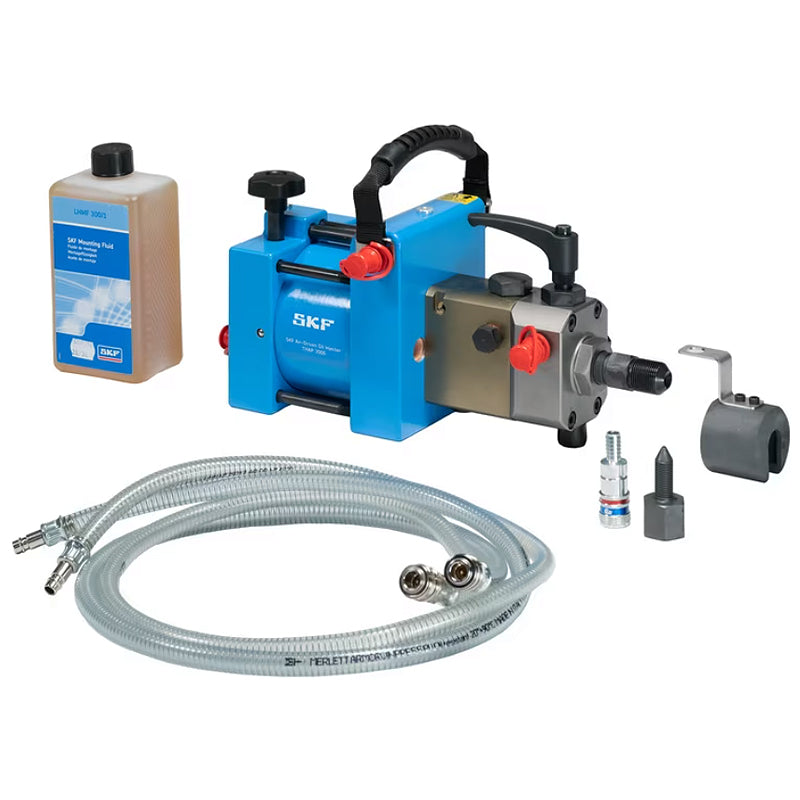

SKF THAP300E Air-driven Oil Injector 300 Mpa (43500 psi)
- Regular price
- €7.332.79 ex VAT
- Sale price
- €7.332,79
- Regular price
-
Not in stock
Quantity Price Breaks
10
€6.526.18
19
€6.159.54
29
€6.086.22
39
€6.012.89
49
€5.939.56
74
€5.866.23
99
€5.499.59
199
€5.426.26
249
€5.352.94
499
€5.279.61
999
€5.132.95
SKU:
THAP300E-SKF
SKF THAP300E Air-driven Oil Injector 300 Mpa (43500 psi)
- Regular price
- €7.332.79 ex VAT
- Sale price
- €7.332,79
- Regular price
-
Technical
| --- | = | Technical Information |
| Maximum pressure | = | 300 Mpa (3000 bar) |
| Volume per stroke | = | 0.83 ml |
| Air Pressure | = | 3-7 bar |
| Air Pressure Limiter | = | Yes, 7 bar (Max) |
| Air Consumption | = | 200 l/min |
| Pressure Ratio | = | 1:500 |
| Pressure Gauge | = | Optional |
| Oil Container | = | No |
| Oil Outlet | = | G 3/4 thread |
| Oil Viscosity | = | 1500mm (Max) |
| Operating Temperature | = | 0 - 45 deg C |
| --- | = | Dimensions and Weights |
| Dimensions | = | 171x405x202mm |
| Case Dimensions | = | 690x245x310mm |
| Product Weight | = | 13 kg |
| Total Product Weight | = | 21.5kg |
| --- | = | Product Contents |
| 1x | = | Air driven pump (300 MPa) |
| 2x | = | Low pressure hoses with couplings 1.5m (4.9ft) |
| 1x | = | Air hose coupling (f) |
| 1x | = | Mounting Fluid 1L (0.22 gal) |
| 1x | = | Instructions for use |
| 1x | = | Carrying case |
